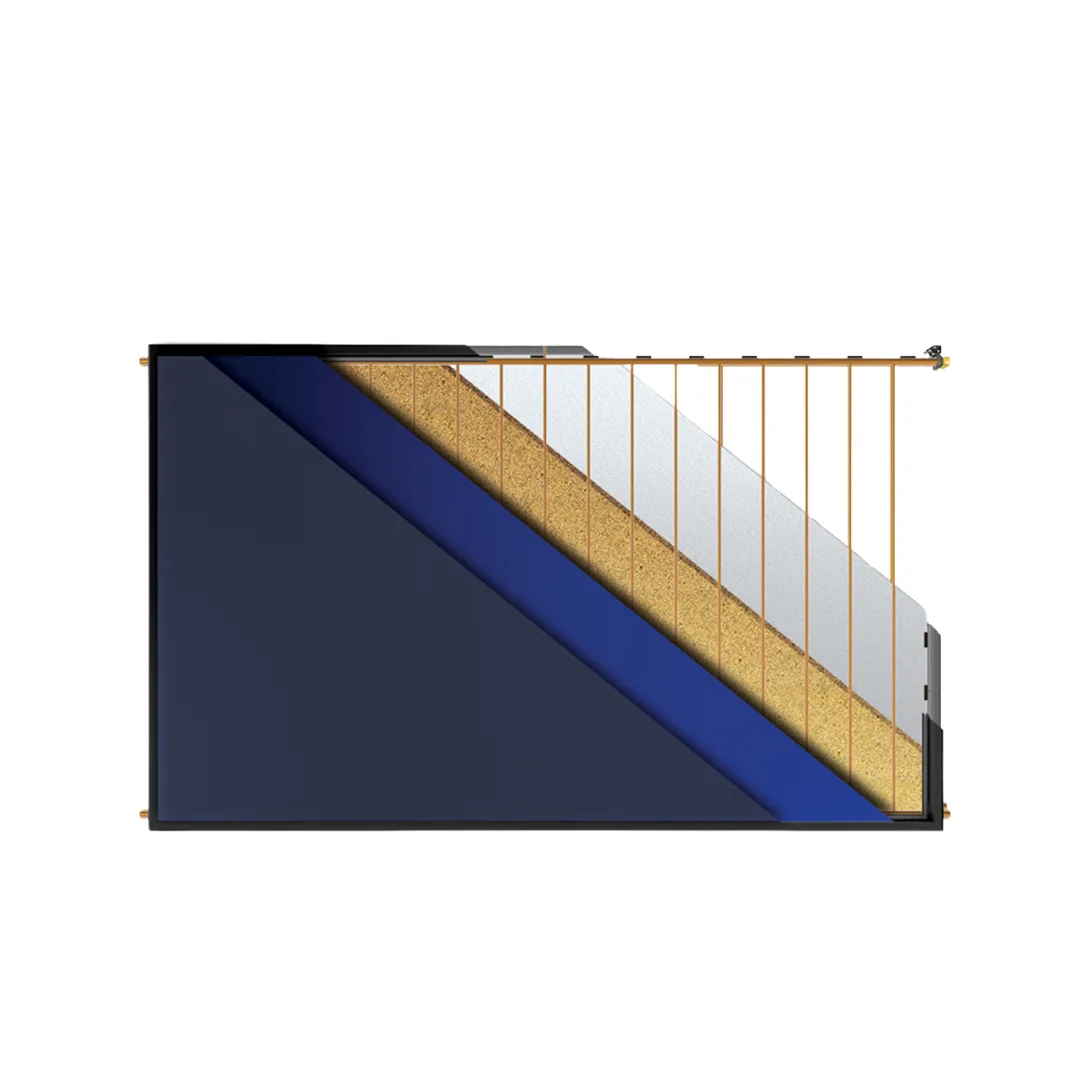

WUNDER ALS HORIZONTAL 2517
State-of-the-art horizontal-format solar thermal collector featuring selective absorptive surface and laser welding technology.
- Selective absorptive surface and laser welding technology for optimal energy conversion.
- Reinforced aluminum frame and tempered low-iron glass for long-lasting performance.
- Easy-to-install fastening system compatible with all standard roof types.
- Horizontal design simplifies setup for both new and existing structures.
- Solar Keymark Certificate and 10-year system warranty included.
High-Performance Solar Heating Solution
The WUNDER ALS HORIZONTAL 2517 Thermal Collector by Solimpeks is a state-of-the-art solar heating system designed to meet the increasing demand for sustainable energy solutions. Featuring a selective absorptive surface and laser welding technology, this collector delivers exceptional efficiency in converting solar radiation into usable heat.
Constructed with a reinforced aluminum frame and tempered low-iron glass, this collector is built to withstand harsh weather conditions and provide long-lasting performance. The rock wool insulation ensures minimal heat loss, while the copper piping enhances thermal conductivity.
Installation is quick and hassle-free, thanks to the easy-to-install fastening system compatible with all standard roof types. The horizontal design further simplifies the setup process, making it ideal for both new and existing structures.
Backed by a 10-year system warranty and Solar Keymark certification, the WUNDER ALS HORIZONTAL 2517 guarantees quality and reliability.
General
Dimensions
mm
1041×1988×90
Weight
kg
37.2
Gross Area
m²
2.07
Aperture Area
m²
1.92
Absorber Area
m²
1.89
Absorptance
0.95
Emittance
0.03
Absorber Material
Selective coating aluminum
Glass Material
Low Iron Tempered Glass
Glass Thickness
mm
4
Heat Carrier Volume
L
1.6
Absorber Pipe Diameter
mm
8
Header Pipe Diameter
mm
18
Connection
inch
3/4"
Insulation Material
Rock Wool/Glass Wool
Insulation Thickness
mm
40
Stagnation Temperature
°C
211
Maximum Operation Pressure
Bar
10
Nominal Flow Rate
L/h
105
Notes
- Solar Keymark certified with a 10-year system warranty.
- Turbulent flow design enhances heat transfer efficiency.
- Compatible with all standard roof types using the modular fastening system.
- Suitable for residential, commercial, and industrial applications.
Contact quality@solimpeks.com for local certificates / OEM certificate duplication requests.
