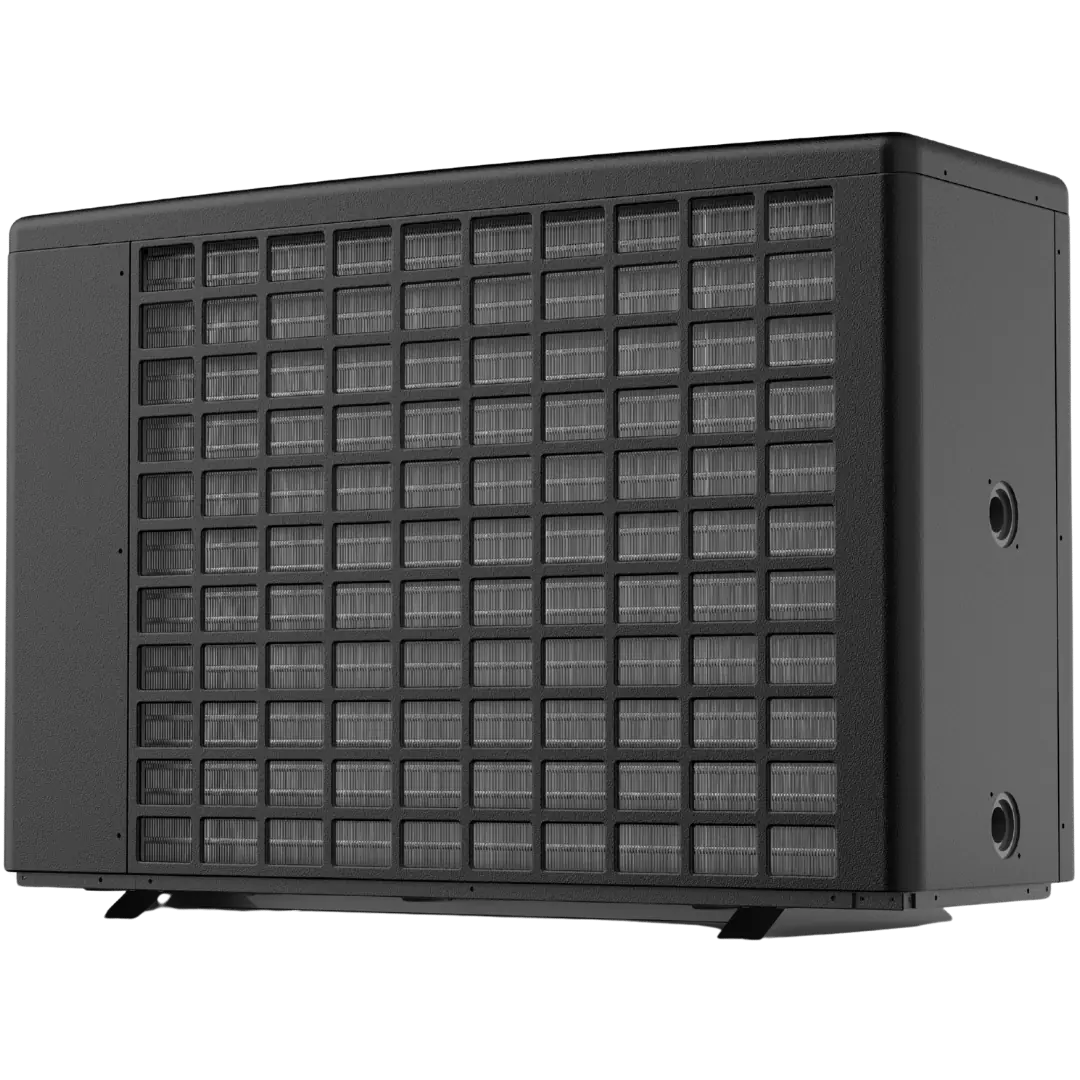

Varm Silent Pool Series
DC Inverter swimming-pool heat pump with eco-friendly R32 refrigerant — heats pool water up to 40 °C and cools down to 9 °C across -7 °C to 43 °C ambient range.
- All-season pool comfort – Heating and cooling modes keep pool water at ideal temperature year-round.
- R32 Eco-Friendly Gas – Low-GWP refrigerant delivering more performance with less gas.
- WiFi & IoT Support – Remote monitoring and control via Smart Life integration and mobile app.
- Heating & Cooling Mode – Seasonal comfort system for both winter heating and summer cooling.
- Corrosion-resistant ABS plastic casing, ideal for pools from 15 m³ to 100 m³+.
Swimming Pool Heat Pump with R32
Operating in ambient temperatures between -7 °C and 43 °C, the Varm Silent Pool Series heats pool water up to 40 °C and cools it down to 9 °C in summer. With its corrosion-resistant ABS plastic casing the unit is long-lasting and ideal for pools from 15 m³ to 100 m³.
The heat pump can be controlled remotely via Smart Life integration, and delivers strong energy efficiency with high COP values. The combination of durability, efficiency and ease of use makes the Varm Silent Pool Heat Pump a perfect pool heating solution.
General
Advised Pool Volume
m³
20~40
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
9.50~2.10
Heating Capacity
Btu/h
32300~7140
Power Consumption
kW
1.46~0.14
COP
6.5~15.0
COP @ 50% Capacity
11.00
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
7.2~1.50
Heating Capacity
Btu/h
24480~5100
Power Consumption
kW
1.43~0.21
COP
5.0~7.2
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
5.2
Sound Pressure at 1 m
dB(A)
38~48
Sound Pressure at 1 m @ 50%
dB(A)
40
Sound Pressure at 10 m
dB(A)
18~25
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
6.3~0.9
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
2~4
Water Pressure Drop (max)
kPa
3
Size & Weight
Net / Gross Weight
kg
62/70
Product Dimensions
mm
1000×396×640
Packing Dimensions (Carton)
mm
1040×410×780
General
Advised Pool Volume
m³
25~50
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
11.00~2.50
Heating Capacity
Btu/h
37400~8500
Power Consumption
kW
1.83~0.17
COP
6.0~14.7
COP @ 50% Capacity
11.00
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
8.5~1.65
Heating Capacity
Btu/h
28900~5610
Power Consumption
kW
1.77~0.23
COP
4.8~7.2
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
6.0
Sound Pressure at 1 m
dB(A)
40~50
Sound Pressure at 1 m @ 50%
dB(A)
41
Sound Pressure at 10 m
dB(A)
19~26
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
7.8~1.0
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
3~5
Water Pressure Drop (max)
kPa
4
Size & Weight
Net / Gross Weight
kg
64/72
Product Dimensions
mm
1000×396×640
Packing Dimensions (Carton)
mm
1040×410×780
General
Advised Pool Volume
m³
30~60
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
14.00~3.15
Heating Capacity
Btu/h
47600~10710
Power Consumption
kW
2.15~0.21
COP
6.5~15.0
COP @ 50% Capacity
10.50
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
10.7~2.40
Heating Capacity
Btu/h
36380~8160
Power Consumption
kW
2.12~0.34
COP
5.0~7.1
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
7.2
Sound Pressure at 1 m
dB(A)
42~51
Sound Pressure at 1 m @ 50%
dB(A)
43
Sound Pressure at 10 m
dB(A)
22~27
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
9.3~1.5
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
4~6
Water Pressure Drop (max)
kPa
5
Size & Weight
Net / Gross Weight
kg
77/87
Product Dimensions
mm
1000×396×640
Packing Dimensions (Carton)
mm
1040×410×780
General
Advised Pool Volume
m³
40~75
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
17.00~3.75
Heating Capacity
Btu/h
57800~13090
Power Consumption
kW
2.62~0.25
COP
6.5~15.0
COP @ 50% Capacity
11.00
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
13.0~2.65
Heating Capacity
Btu/h
44200~9010
Power Consumption
kW
2.58~0.36
COP
5.0~7.4
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
8.6
Sound Pressure at 1 m
dB(A)
43~52
Sound Pressure at 1 m @ 50%
dB(A)
44
Sound Pressure at 10 m
dB(A)
23~30
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
11.3~1.6
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
6~9
Water Pressure Drop (max)
kPa
5
Size & Weight
Net / Gross Weight
kg
81/91
Product Dimensions
mm
1125×416×765
Packing Dimensions (Carton)
mm
1165×430×905
General
Advised Pool Volume
m³
55~100
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
20.00~4.00
Heating Capacity
Btu/h
68000~13600
Power Consumption
kW
3.33~0.27
COP
6.0~14.8
COP @ 50% Capacity
11.00
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
15.6~2.85
Heating Capacity
Btu/h
53040~9690
Power Consumption
kW
3.25~0.40
COP
4.8~7.0
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
10.1
Sound Pressure at 1 m
dB(A)
43~53
Sound Pressure at 1 m @ 50%
dB(A)
44
Sound Pressure at 10 m
dB(A)
24~31
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
14.3~1.8
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
8~10
Water Pressure Drop (max)
kPa
6
Size & Weight
Net / Gross Weight
kg
81/91
Product Dimensions
mm
1125×416×765
Packing Dimensions (Carton)
mm
1165×430×905
General
Advised Pool Volume
m³
70~130
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
24.00~4.80
Heating Capacity
Btu/h
81600~16320
Power Consumption
kW
4.00~0.32
COP
6.0~15.0
COP @ 50% Capacity
11.00
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
18.7~3.42
Heating Capacity
Btu/h
63580~11630
Power Consumption
kW
3.89~0.49
COP
4.8~7.0
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
11.8
Sound Pressure at 1 m
dB(A)
44~54
Sound Pressure at 1 m @ 50%
dB(A)
45
Sound Pressure at 10 m
dB(A)
25~32
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
17.8~2.3
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
9~12
Water Pressure Drop (max)
kPa
8
Size & Weight
Net / Gross Weight
kg
95/105
Product Dimensions
mm
1125×416×765
Packing Dimensions (Carton)
mm
1165×430×905
General
Advised Pool Volume
m³
60~120
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
28.00~5.60
Heating Capacity
Btu/h
95500~19100
Power Consumption
kW
4.75~0.37
COP
6.0~15.0
COP @ 50% Capacity
11.00
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
21.8~4.36
Heating Capacity
Btu/h
74380~14880
Power Consumption
kW
4.54~0.62
COP
4.8~7.0
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
13.8
Sound Pressure at 1 m
dB(A)
45~56
Sound Pressure at 1 m @ 50%
dB(A)
48
Sound Pressure at 10 m
dB(A)
26~34
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
20.8~2.8
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
10~14
Water Pressure Drop (max)
kPa
20
Size & Weight
Net / Gross Weight
kg
110/122
Product Dimensions
mm
1156×430×905
Packing Dimensions (Carton)
mm
1230×440×1030
General
Advised Pool Volume
m³
70~130
Operating Air Temperature
°C
-7~43
Performance (Air 27 °C, Water 26 °C, Humidity 80%)
Heating Capacity
kW
32.50~6.50
Heating Capacity
Btu/h
110900~22100
Power Consumption
kW
5.42~0.43
COP
6.0~15.0
COP @ 50% Capacity
11.00
Performance (Air 15 °C, Water 26 °C, Humidity 70%)
Heating Capacity
kW
25.4~5.07
Heating Capacity
Btu/h
86665~17300
Power Consumption
kW
5.29~0.72
COP
4.8~7.0
COP @ 50% Capacity
6.50
Cooling & Sound
Cooling Capacity (Air 35 °C, Water 28 °C, Humidity 80%)
kW
15.6
Sound Pressure at 1 m
dB(A)
45~57
Sound Pressure at 1 m @ 50%
dB(A)
49
Sound Pressure at 10 m
dB(A)
26~35
Components
Heat Exchanger
Spiral Titanium Tube in PVC
Casing
ABS Plastic Casing
Refrigerant
R32
Compressor
Panasonic
Four-Way Valve
Sanhua
Expansion Valve
Sanhua
Electrical
Power Supply
230V/1Ph/50Hz
Nominal Input Current @ 15 °C Air
A
24.2~3.3
Operating Ranges
Operating Water Temp (Heating)
°C
9~40
Operating Water Temp (Cooling)
°C
9~35
Hydraulic
Water Connection
mm
Φ50
Advised Water Flow
m³/h
12~16
Water Pressure Drop (max)
kPa
25
Size & Weight
Net / Gross Weight
kg
115/127
Product Dimensions
mm
1156×430×905
Packing Dimensions (Carton)
mm
1230×440×1030
Notes
- Panasonic compressor, Sanhua four-way + expansion valve, titanium HX in PVC.
- Reference performance at two conditions: Air 27 °C / 15 °C (Water 26 °C).
- Single-phase 230V for all models.
Contact quality@solimpeks.com for local certificates / OEM certificate duplication requests.
Understand the technology
Explainers from our Knowledge Hub on how this technology works.
Guides
Heat Pumps for Homes & Business: The Complete Guide
A heat pump moves heat from outside air, the ground or water into a building, delivering 3–5 kWh of heat per kWh of electricity —...
Glossary
COP (Coefficient of Performance)
COP (Coefficient of Performance) is the ratio of useful heat a heat pump delivers to the electricity it consumes at one fixed...
Common Questions
What size heat pump do I need for my home?
Size a heat pump to the building's calculated heat load at design outdoor temperature, not to the old boiler. Typical specific...
FAQ
Heat Pump FAQ
An air source heat pump extracts heat from outdoor air and delivers it to radiators, underfloor heating and a hot water cylinder...
Frequently asked questions
Short, factual answers about the Varm Silent Pool Series.
Which pools suit the Varm Silent Pool Series?
The Varm Silent Pool Series covers advised pool volumes from 25~50 m³ on the smallest model up to 70~130 m³ on the largest. It operates across -7~43 °C ambient air temperature, heating pool water up to 40 °C and cooling it in summer.
How efficient is it?
The specification table lists COP values of 4.8~7.4 across the models — at the favourable end that means over seven units of pool heat per unit of electricity. The DC-inverter compressor modulates output instead of stopping and starting, which is where the high seasonal efficiency comes from.
Is it safe for chlorinated pool water?
Yes — heat transfer happens in a spiral titanium tube inside a PVC shell. Titanium resists chlorine and salt-water corrosion, which is why it is the standard exchanger material for pool duty.
What warranty does the Varm Silent Pool Series carry?
Solimpeks backs the Varm Silent Pool Series with a 2-year product warranty, stated on this product page.
Related Products
Varm Boost Series
High-efficiency monoblock heat pump with natural R290 refrigerant, 75 °C outlet temperature, reliable operation down to -25 °C and Wi-Fi + IoT control.
Commercial Pool Series
Commercial pool heat pump with R410A refrigerant — designed for pools from 40 m³ to 500 m³ with outlet temperature up to 43 °C and COP up to 6.2.
Commercial Duo Series
High-efficiency commercial heat pump with eco-friendly R290 refrigerant — heating, cooling and DHW up to 78 °C, reliable down to -25 °C ambient.
Solido
Air-source domestic hot water heat pump with integrated enamel-coated tank, delivering hygienic DHW up to 75 °C for residential and small commercial use.
