WUNDER ANP 1808
High-performance 1.8 m² selective-surface solar thermal collector designed for residential, commercial, and industrial hot water applications.

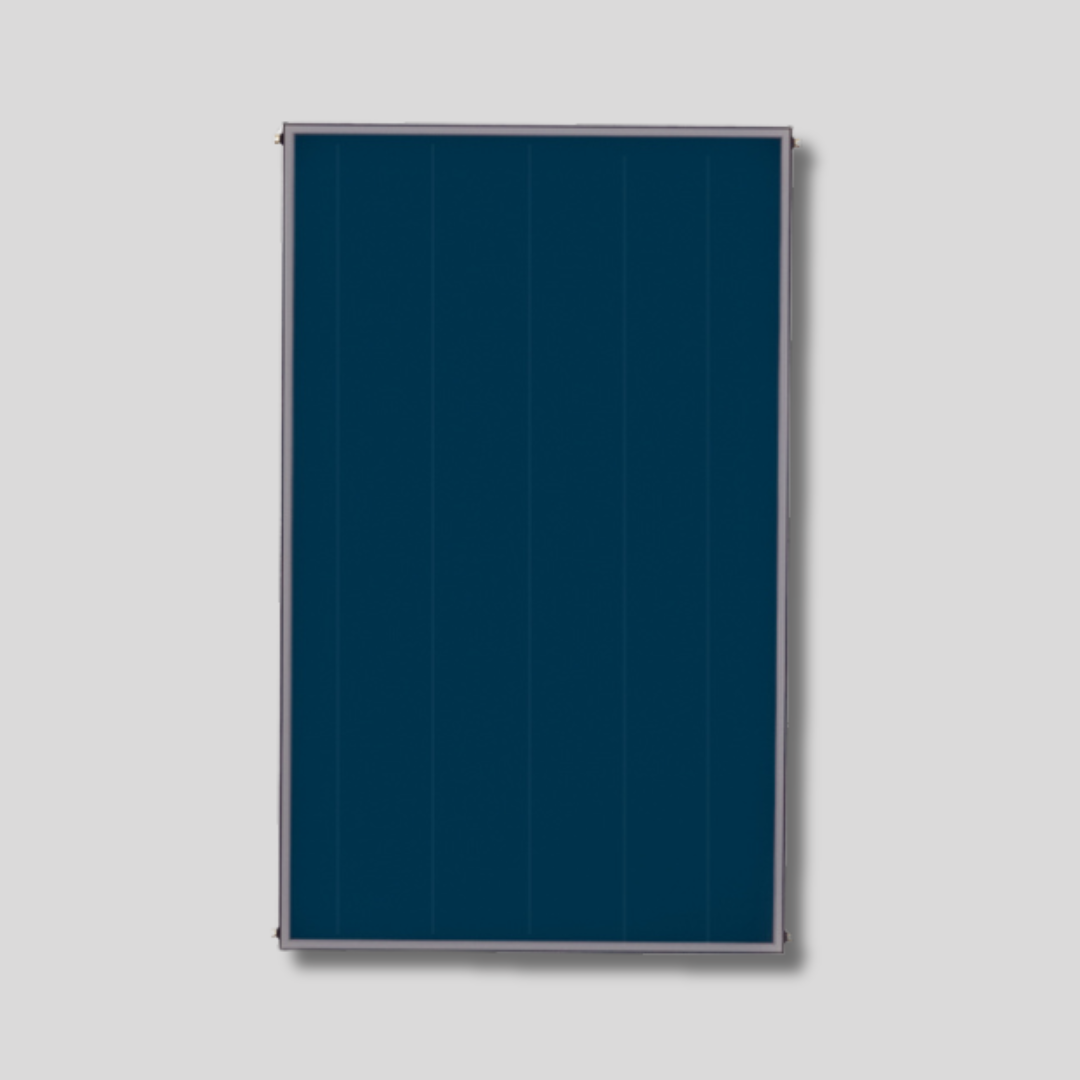

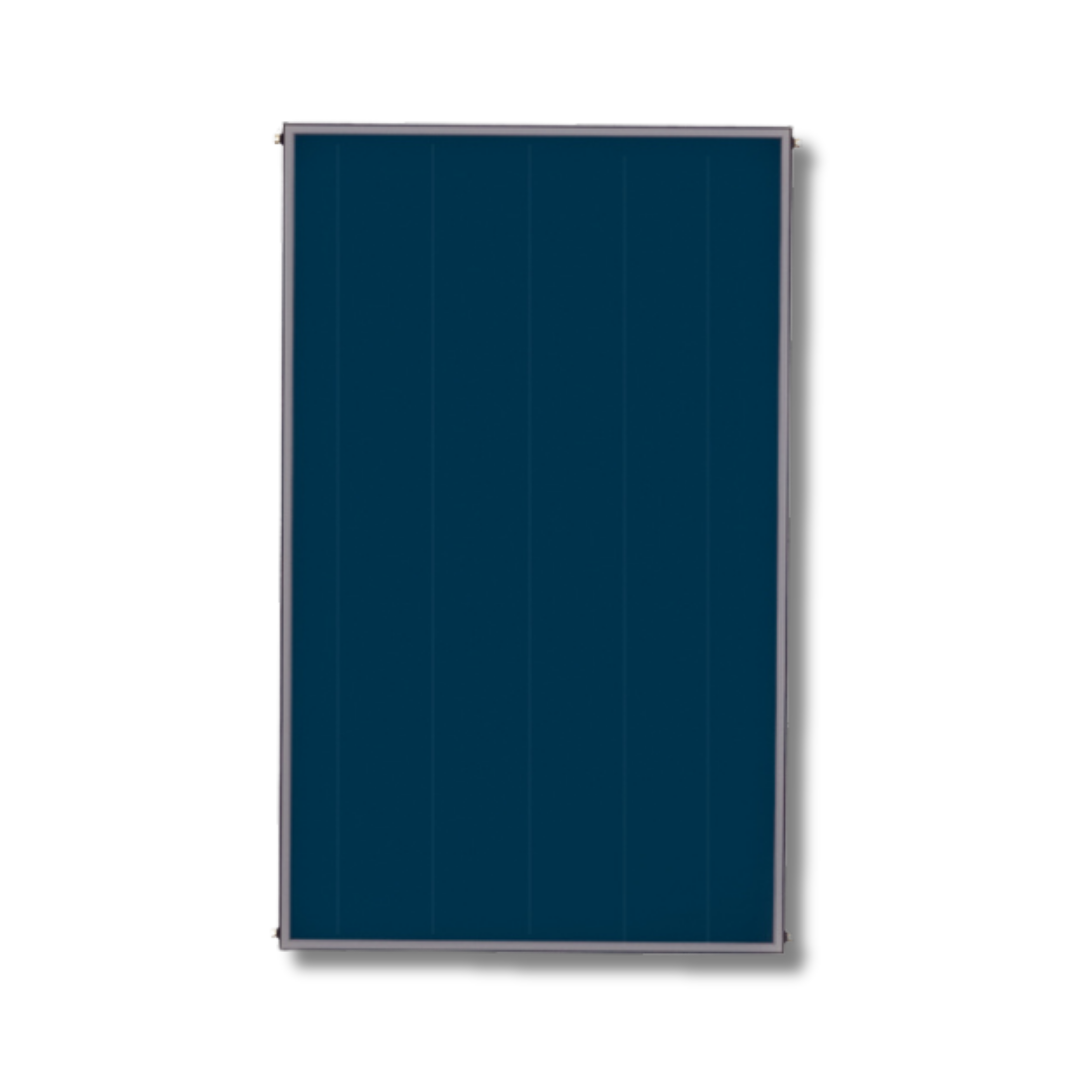

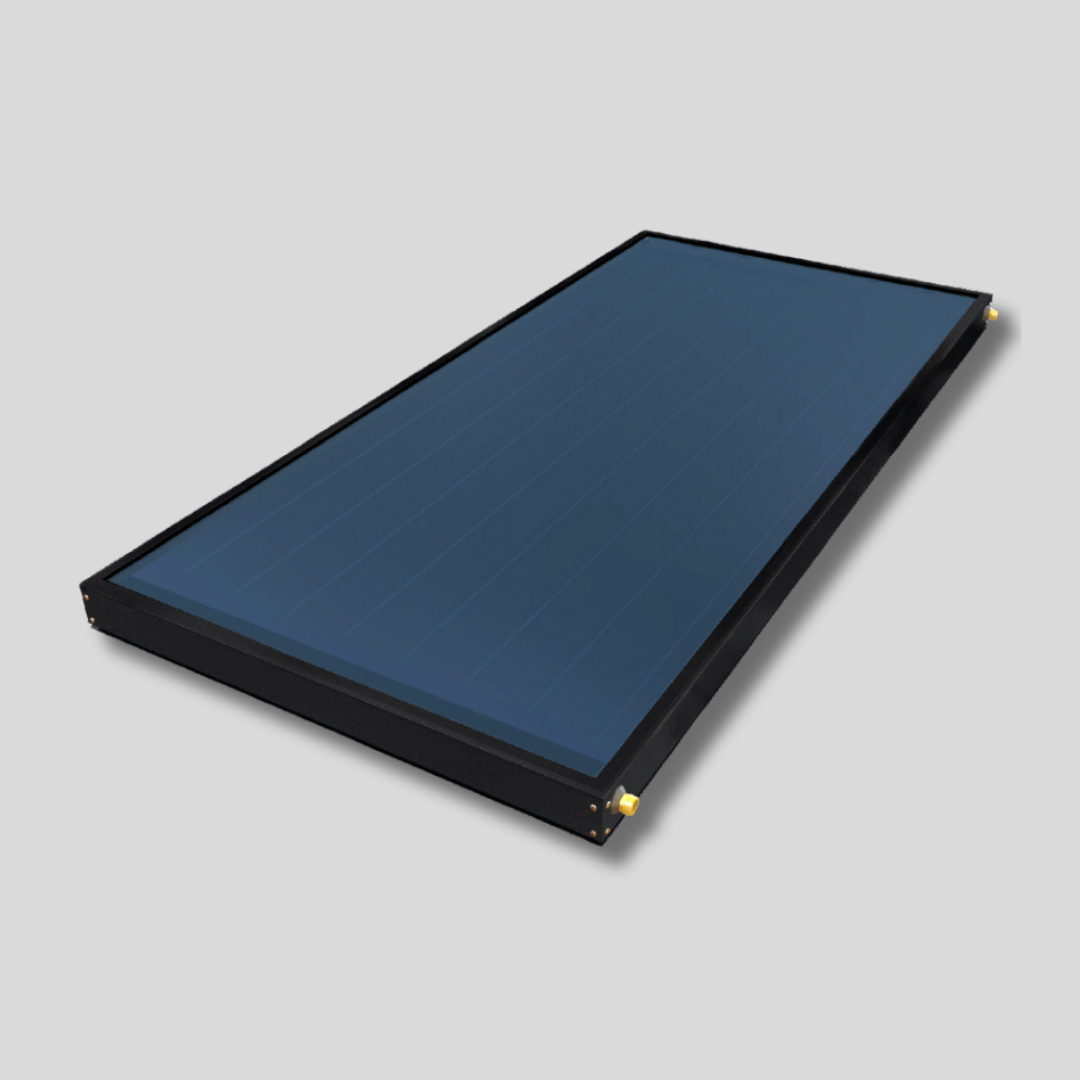

WUNDER ANSG 2108
WUNDER ANSG 2108
High-performance solar thermal collector engineered for superior solar energy absorption with Almeeco-Tinox selective coating and laser-welded copper pipes.
- High-Efficiency Solar Absorption – Almeeco-Tinox selective coating and laser-welded copper pipes optimize heat transfer.
- Durable & Weatherproof Design – Reinforced aluminum frame and tempered glass withstand harsh weather conditions.
- Fast & Easy Installation – Modular mounting system allows quick and hassle-free setup on all roof types.
- Optimized Heat Retention – Rock wool insulation minimizes energy loss, enhancing thermal efficiency.
- Certified & Long-Lasting – Backed by a 10-year warranty and Solar Keymark certification for quality assurance.
High Performance for Maximum Solar Efficiency

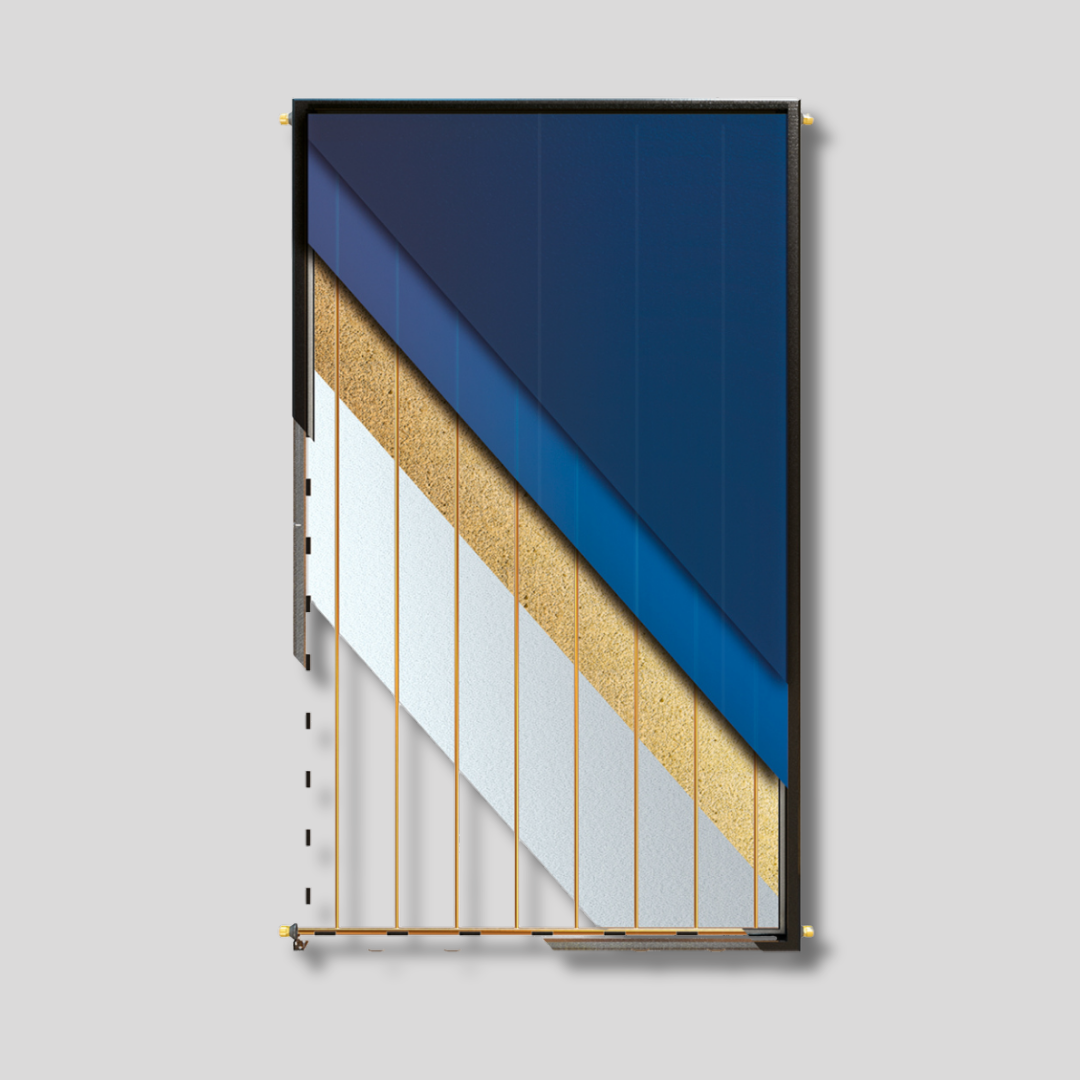

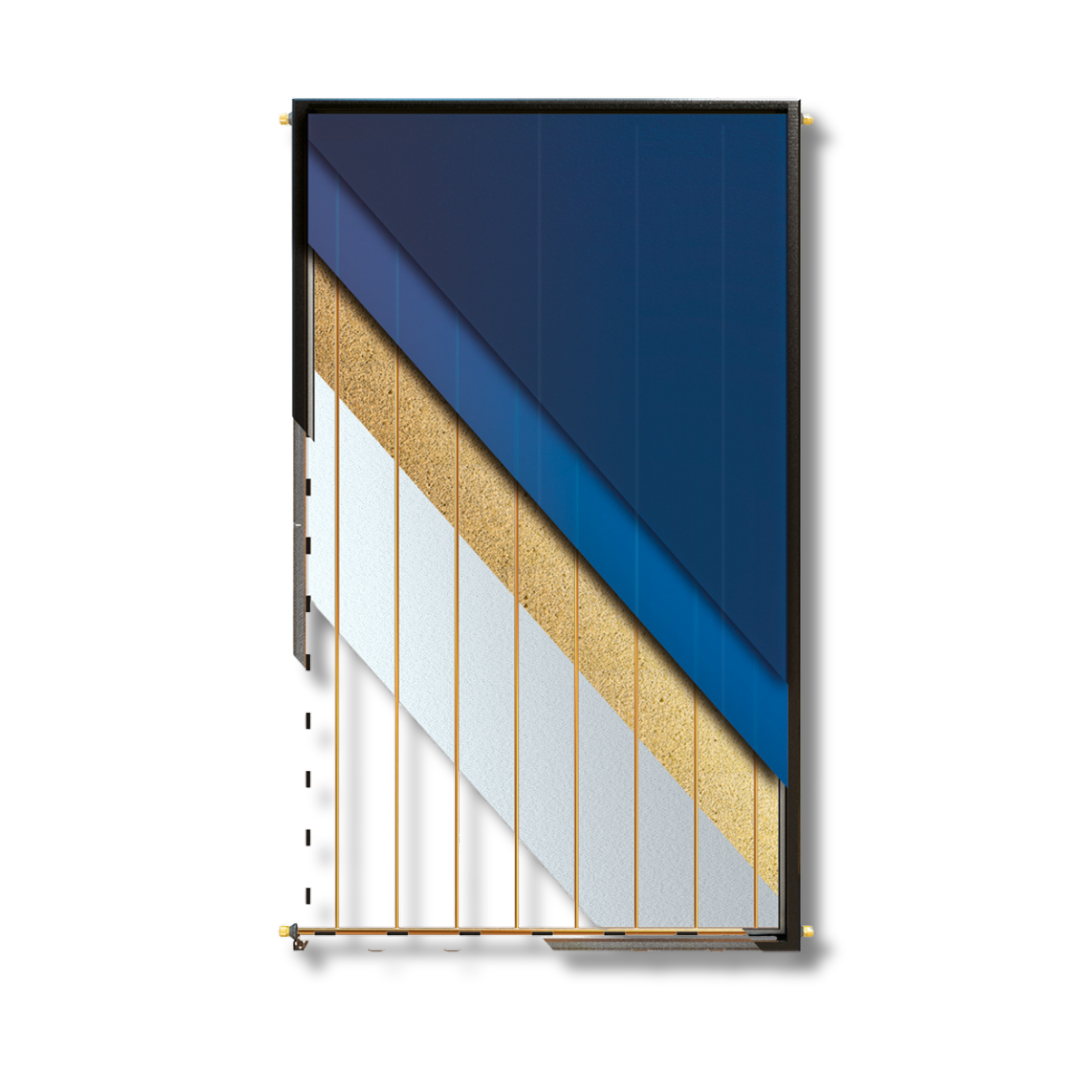

The WUNDER ANSG 2108 Thermal Collector is designed for superior solar energy absorption and durability. Equipped with Almeeco-Tinox selective coating, rock wool insulation, and laser-welded copper pipes, it ensures high efficiency and maximum heat retention. With its robust aluminum frame and tempered glass, it provides long-term stability for sustainable water heating solutions in residential, commercial, and industrial applications.
The WUNDER ANSG 2108 offers exceptional energy savings through its efficient heat absorption technology. The Almeeco-Tinox selective coating on the absorber surface ensures maximum capture of solar radiation, while the laser-welded copper pipes optimize thermal transfer. The rock wool insulation plays a crucial role in reducing energy loss, maintaining heat for longer periods and increasing overall thermal efficiency.
In addition to its exceptional efficiency, the WUNDER ANSG 2108 is designed for long-term durability. Its reinforced aluminum frame and tempered glass are engineered to withstand the toughest weather conditions, providing superior resistance to UV degradation, high winds, and extreme temperatures. The modular mounting system allows easy installation on various roof types.
The WUNDER ANSG 2108 is a future-proof investment for those looking to reduce energy costs and minimize their environmental impact. The system's Solar Keymark certification ensures it meets the highest standards for performance, safety, and environmental sustainability. Backed by a 10-year warranty, this solar thermal collector provides reliable performance for years to come.
General
Dimensions
mm
1988×1041×90
Weight
kg
27
Gross Area
m²
2.07
Aperture Area
m²
1.93
Absorber Area
m²
1.93
Absorptance
0.95
Emittance
0.04
Absorber Material
Selective coating aluminum
Glass Material
Normal Iron Tempered Glass
Glass Thickness
mm
3.2
Heat Carrier Volume
L
1.15
Absorber Pipe Diameter
mm
8
Header Pipe Diameter
mm
18
Connection
inch
3/4"
Insulation Material
Glass Wool
Insulation Thickness
mm
50
Stagnation Temperature
°C
210
Maximum Operation Pressure
Bar
10
Nominal Flow Rate
kg/hm²
72
Notes
- Solar Keymark certified with a 10-year system warranty.
- Turbulent flow design enhances heat transfer efficiency.
- Compatible with all standard roof types using the modular fastening system.
- Suitable for residential, commercial, and industrial applications.
Contact quality@solimpeks.com for local certificates / OEM certificate duplication requests.
Understand the technology
Explainers from our Knowledge Hub on how this technology works.
Guides
Solar Thermal Collectors: The Complete Guide
Solar thermal collectors convert sunlight directly into usable heat with efficiencies of 60–80% — three to four times the...
Common Questions
Flat-plate vs evacuated tube collectors: which is better?
Flat-plate collectors are the better choice for domestic hot water in sunny and temperate climates: higher optical efficiency...
Glossary
Collector Efficiency Curve (η0, a1, a2)
The collector efficiency curve states how a solar collector's efficiency falls as it runs hotter than its surroundings: η = η0 −...
Glossary
Solar Keymark
Solar Keymark is the leading European certification for solar thermal products, issued under the CEN Keymark scheme. It proves a...
Frequently asked questions
Short, factual answers about the WUNDER ANSG 2108.
Is the WUNDER ANSG 2108 Solar Keymark certified?
Yes. The Wunder collector range holds Solar Keymark certification issued through DIN CERTCO, and the certificate artwork is displayed on this page. Solar Keymark is the European quality mark that most national subsidy schemes require before a collector qualifies for funding.
How efficient is the WUNDER ANSG 2108's absorber?
The selective-coated absorber reaches an absorptance of 0.95 while keeping emittance at 0.04, meaning it captures 95% of incoming solar radiation and re-radiates very little of it as heat loss. Aperture area is 1.93 m².
How many collectors do I need for my home?
For domestic hot water, plan roughly 1-1.5 m² of flat-plate collector area per person in southern climates and 1.5-2.5 m² per person in central and northern Europe, with 40-60 litres of storage per m² of collector. A family of four typically needs 2 collectors and a 300 L tank in Turkey or Spain, or 3 collectors and 300-400 L in Germany.
What warranty does the WUNDER ANSG 2108 carry?
Solimpeks backs the WUNDER ANSG 2108 with a 10-year product warranty, stated on this product page. Have the guarantee certificate stamped by the seller and follow the manual's operating conditions to keep the warranty valid.
