WUNDER ANP 1808
High-performance 1.8 m² selective-surface solar thermal collector designed for residential, commercial, and industrial hot water applications.
WUNDER ANSG 1808
Download Flyer
Download Manual
WUNDER ANSG 1808
High-performance solar thermal collector designed for superior energy absorption and durability with advanced Almeeco-Tinox selective coating and laser-welded copper pipes.
- High-Efficiency Solar Absorption – Almeeco-Tinox selective coating and laser-welded copper pipes optimize heat transfer.
- Durable & Weatherproof Design – Reinforced aluminum frame and tempered glass withstand harsh weather conditions.
- Fast & Easy Installation – Modular mounting system allows quick and hassle-free setup on all roof types.
- Optimized Heat Retention – Rock wool insulation minimizes energy loss, enhancing thermal efficiency.
- Certified & Long-Lasting – Backed by a 10-year warranty and Solar Keymark certification for quality assurance.
High-Performance Solar Thermal Collectors

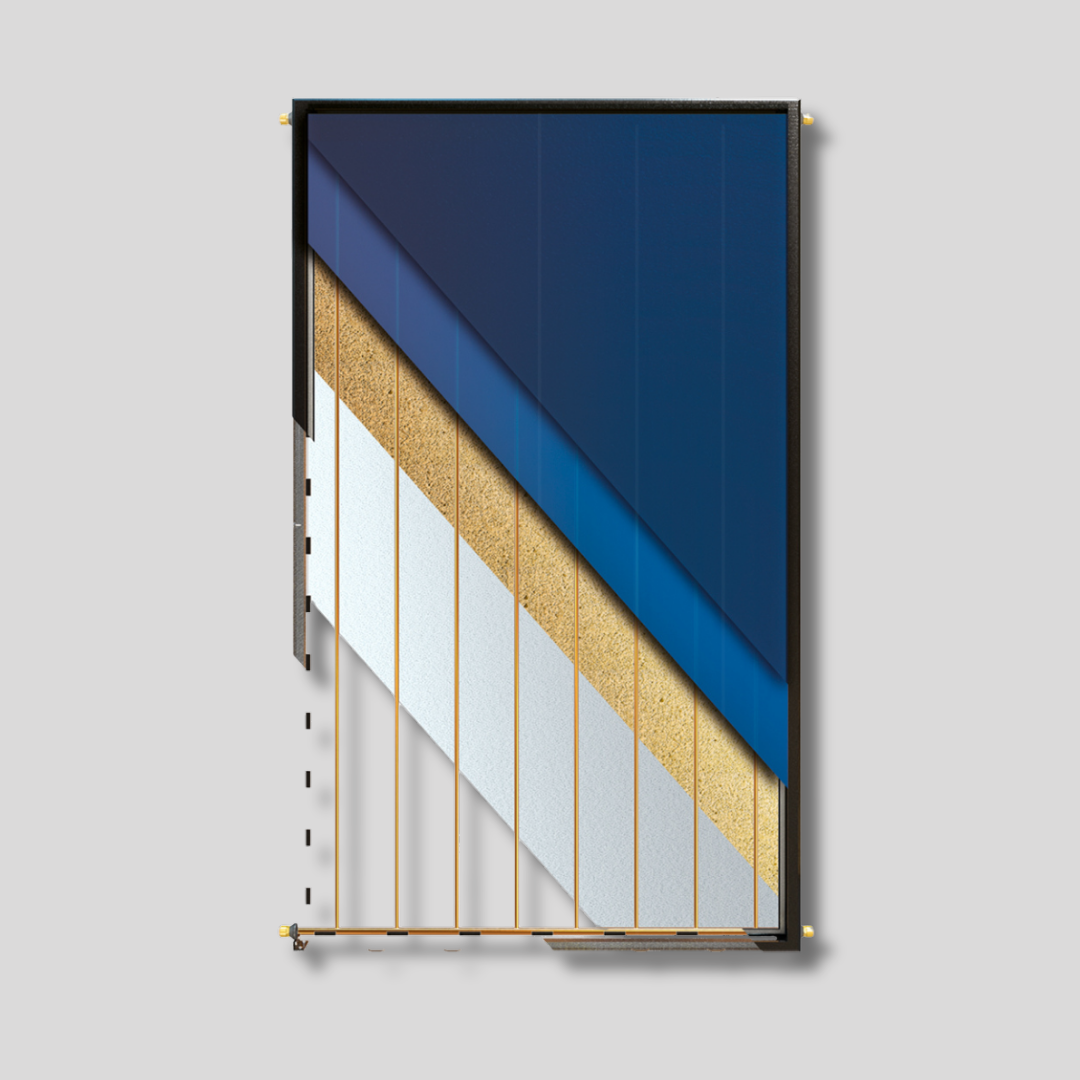

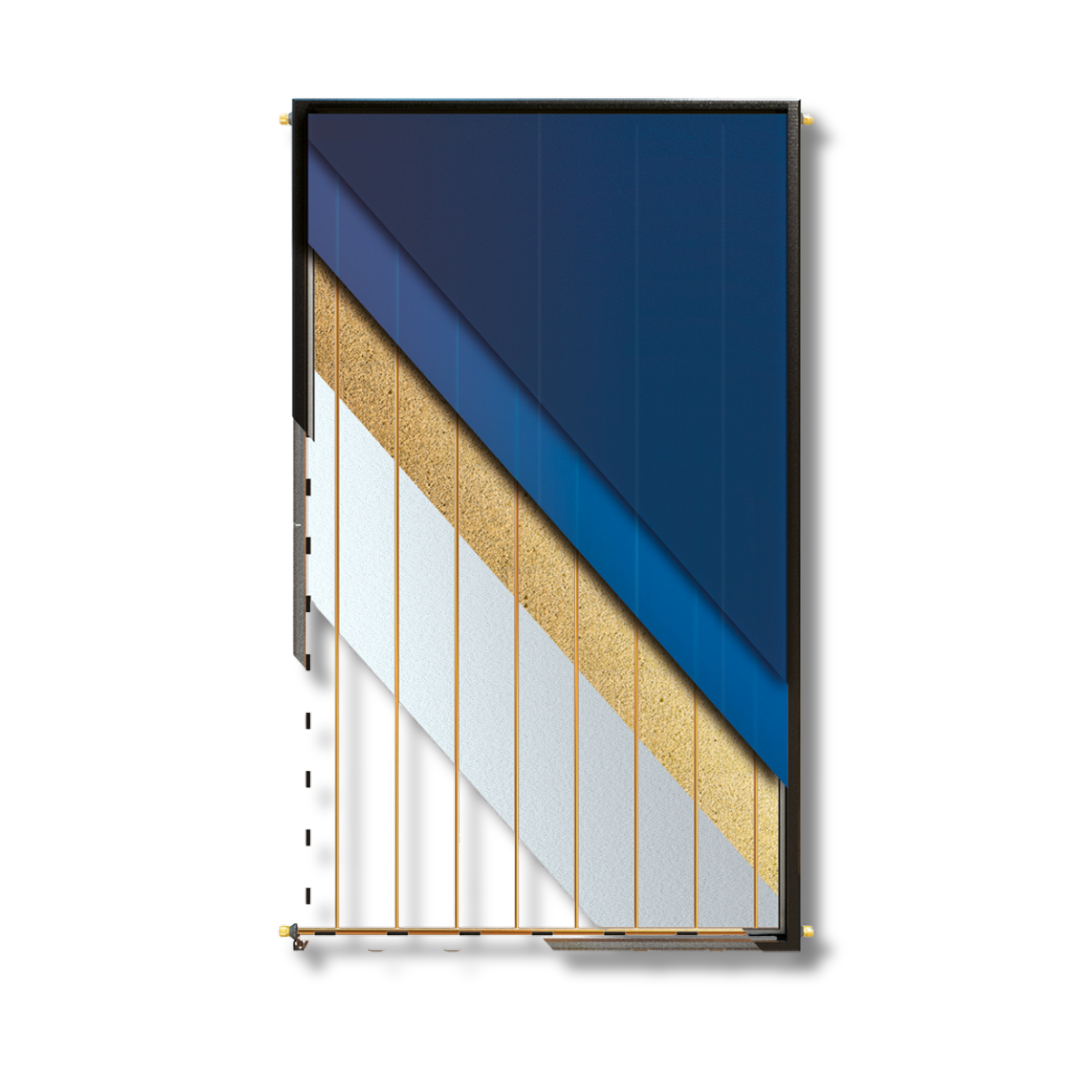

The WUNDER ANSG 1808 Thermal Collector is designed for superior solar energy absorption and durability. Equipped with Almeeco-Tinox selective coating, rock wool insulation, and laser-welded copper pipes, it ensures high efficiency and maximum heat retention. With its robust aluminum frame and tempered glass, it provides long-term stability for sustainable water heating solutions in residential, commercial, and industrial applications.
The WUNDER ANSG 1808 offers exceptional energy savings through its efficient heat absorption technology. The Almeeco-Tinox selective coating on the absorber surface ensures maximum capture of solar radiation, while the laser-welded copper pipes optimize thermal transfer. The rock wool insulation plays a crucial role in reducing energy loss, maintaining heat for longer periods and increasing overall thermal efficiency.
In addition to its exceptional efficiency, the WUNDER ANSG 1808 is designed for long-term durability. Its reinforced aluminum frame and tempered glass are engineered to withstand the toughest weather conditions, providing superior resistance to UV degradation, high winds, and extreme temperatures. The modular mounting system allows easy installation on various roof types.
The WUNDER ANSG 1808 is a future-proof investment for those looking to reduce energy costs and minimize their environmental impact. The system's Solar Keymark certification ensures it meets the highest standards for performance, safety, and environmental sustainability. Backed by a 10-year warranty, this solar thermal collector provides reliable performance for years to come.
General
Dimensions
mm
1990×1220×90
Weight
kg
44
Gross Area
m²
2.42
Aperture Area
m²
2.24
Absorber Area
m²
2.23
Absorptance
0.95
Emittance
0.03
Absorber Material
Selective coating aluminum
Glass Material
Normal Iron Tempered Glass
Glass Thickness
mm
4
Heat Carrier Volume
L
1.27
Absorber Pipe Diameter
mm
8
Header Pipe Diameter
mm
18
Connection
inch
3/4"
Insulation Material
Glass Wool
Insulation Thickness
mm
50
Stagnation Temperature
°C
190
Maximum Operation Pressure
Bar
10
Nominal Flow Rate
L/h
120
Notes
- Solar Keymark certified with a 10-year system warranty.
- Turbulent flow design enhances heat transfer efficiency.
- Compatible with all standard roof types using the modular fastening system.
- Suitable for residential, commercial, and industrial applications.
Contact quality@solimpeks.com for local certificates / OEM certificate duplication requests.
