WUNDER ALS HORIZONTAL 2117
WUNDER ALS HORIZONTAL 2117
State-of-the-art horizontal-format solar thermal collector designed for seamless integration on residential, commercial, and industrial roofs.
- Selective absorptive surface and laser welding technology for optimal energy conversion.
- Reinforced aluminum frame and tempered low-iron glass for long-lasting performance.
- Easy-to-install fastening system compatible with all standard roof types.
- Horizontal design simplifies setup for both new and existing structures.
- Solar Keymark Certificate and 10-year system warranty included.
High-Performance Solar Heating Solution

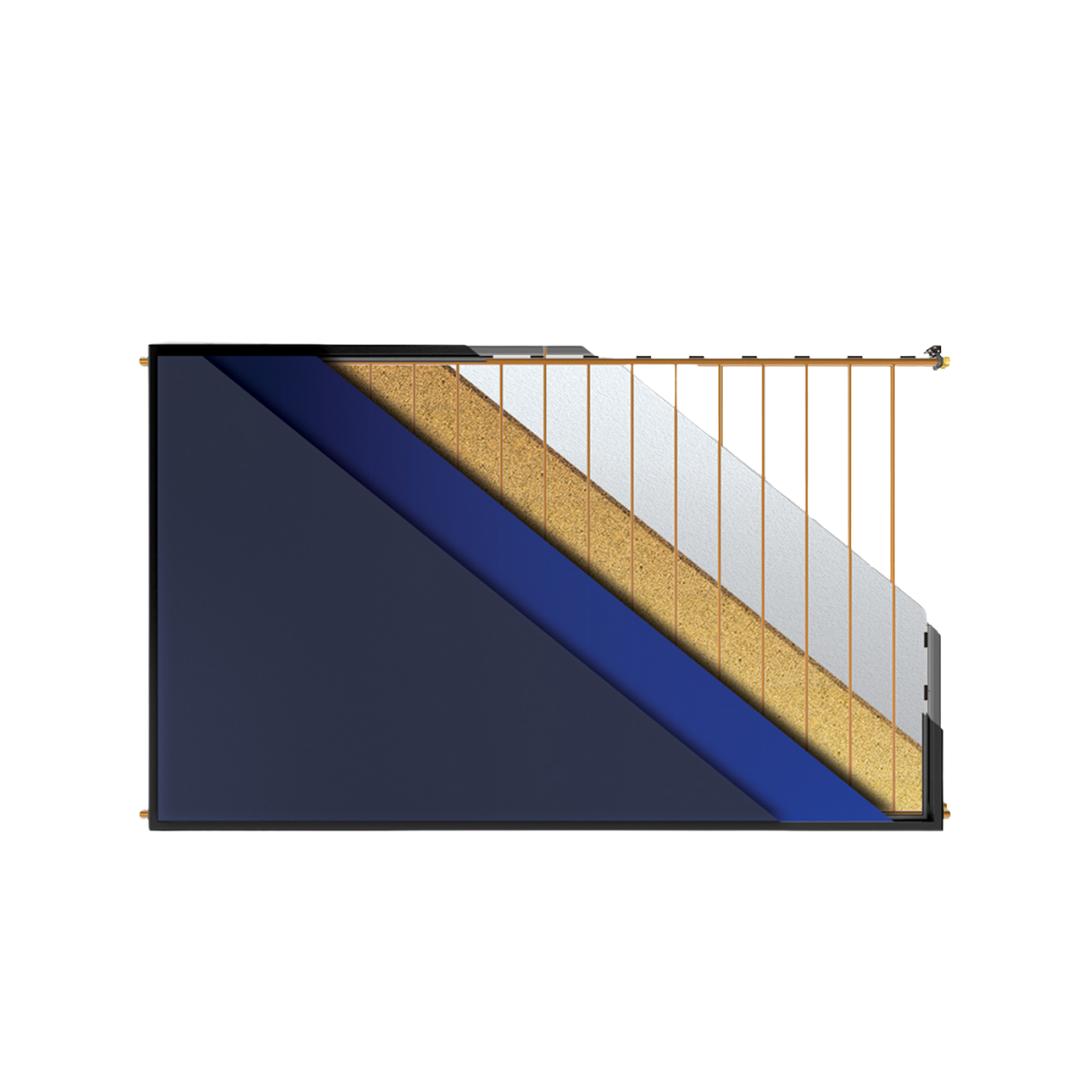

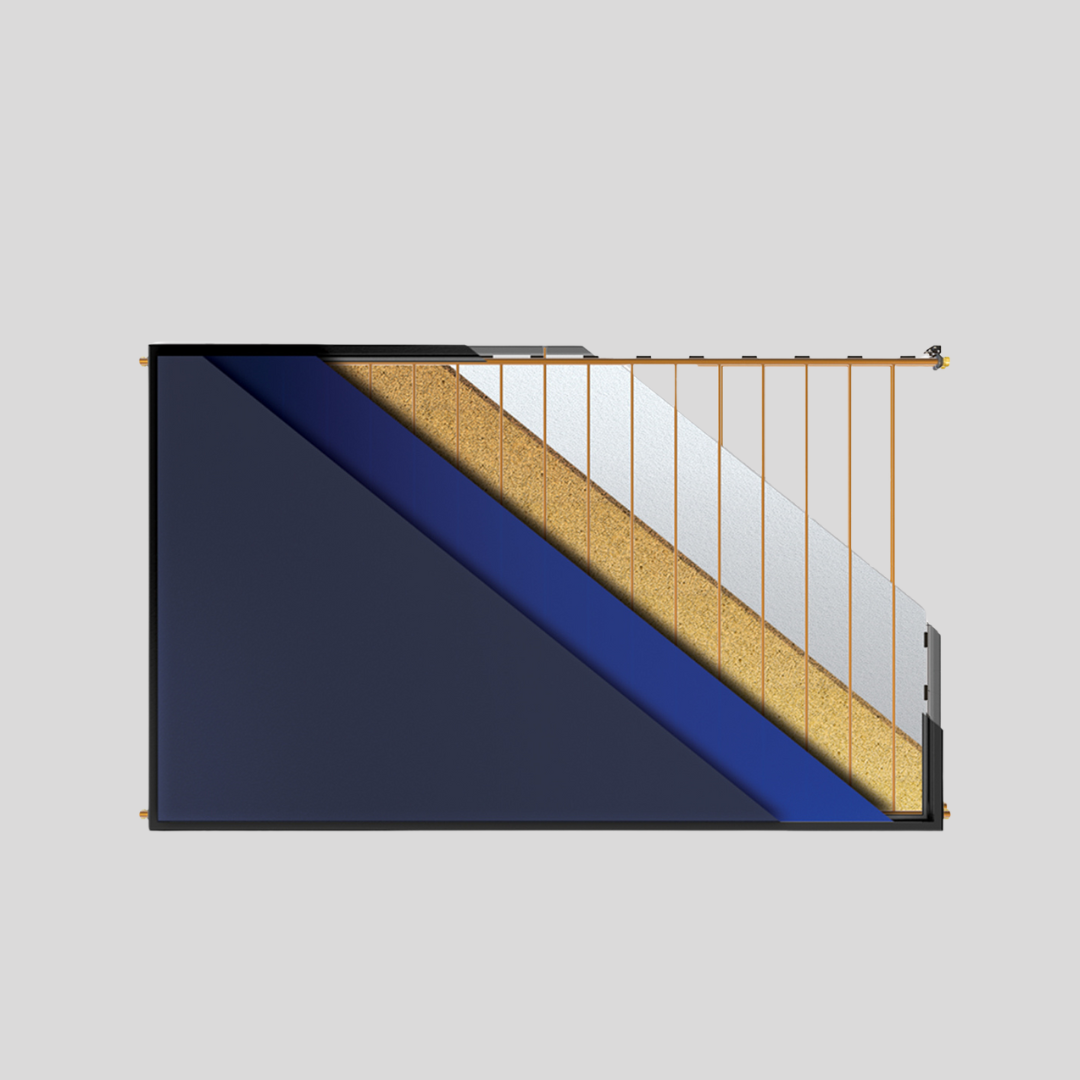

The WUNDER ALS HORIZONTAL 2117 Thermal Collector by Solimpeks is a state-of-the-art solar heating system designed to meet the increasing demand for sustainable energy solutions. Featuring a selective absorptive surface and laser welding technology, this collector delivers exceptional efficiency in converting solar radiation into usable heat.
Constructed with a reinforced aluminum frame and tempered low-iron glass, this collector is built to withstand harsh weather conditions and provide long-lasting performance. The rock wool insulation ensures minimal heat loss, while the copper piping enhances thermal conductivity.
Installation is quick and hassle-free, thanks to the easy-to-install fastening system compatible with all standard roof types. The horizontal design further simplifies the setup process, making it ideal for both new and existing structures.
Backed by a 10-year system warranty and Solar Keymark certification, the WUNDER ALS HORIZONTAL 2117 guarantees quality and reliability.
General
Dimensions
mm
1041×1988×90
Weight
kg
28.5
Gross Area
m²
2.07
Absorber Area
m²
1.93
Absorptance
0.95
Emittance
0.03
Absorber Material
Highly selective aluminum
Glass Material
Low Iron Tempered Glass
Glass Thickness
mm
3.2
Heat Carrier Volume
L
1.9
Absorber Pipe Diameter
mm
8
Header Pipe Diameter
mm
18
Connection
inch
3/4"
Insulation Material
Rock Wool
Insulation Thickness
mm
40
Stagnation Temperature
°C
211
Maximum Operation Pressure
Bar
10
Nominal Flow Rate
kg/hm²
72
Notes
- Solar Keymark certified with a 10-year system warranty.
- Turbulent flow design enhances heat transfer efficiency.
- Compatible with all standard roof types using the modular fastening system.
- Suitable for residential, commercial, and industrial applications.
Contact quality@solimpeks.com for local certificates / OEM certificate duplication requests.
Understand the technology
Explainers from our Knowledge Hub on how this technology works.
Guides
Solar Thermal Collectors: The Complete Guide
Solar thermal collectors convert sunlight directly into usable heat with efficiencies of 60–80% — three to four times the...
Common Questions
Flat-plate vs evacuated tube collectors: which is better?
Flat-plate collectors are the better choice for domestic hot water in sunny and temperate climates: higher optical efficiency...
Glossary
Collector Efficiency Curve (η0, a1, a2)
The collector efficiency curve states how a solar collector's efficiency falls as it runs hotter than its surroundings: η = η0 −...
Glossary
Solar Keymark
Solar Keymark is the leading European certification for solar thermal products, issued under the CEN Keymark scheme. It proves a...
Frequently asked questions
Short, factual answers about the WUNDER ALS HORIZONTAL 2117.
Is the WUNDER ALS HORIZONTAL 2117 Solar Keymark certified?
Yes. Solimpeks lists the WUNDER ALS HORIZONTAL 2117 as Solar Keymark certified; the DIN CERTCO certificates displayed on this page cover the WUNDER ALS and ANSG models, so request the ALS HORIZONTAL licence document from Solimpeks when a subsidy application needs it. Solar Keymark is the European quality mark that most national subsidy schemes require before a collector qualifies for funding.
How efficient is the WUNDER ALS HORIZONTAL 2117's absorber?
The selective-coated absorber reaches an absorptance of 0.95 while keeping emittance at 0.03, meaning it captures 95% of incoming solar radiation and re-radiates very little of it as heat loss.
How many collectors do I need for my home?
For domestic hot water, plan roughly 1-1.5 m² of flat-plate collector area per person in southern climates and 1.5-2.5 m² per person in central and northern Europe, with 40-60 litres of storage per m² of collector. A family of four typically needs 2 collectors and a 300 L tank in Turkey or Spain, or 3 collectors and 300-400 L in Germany.
What warranty does the WUNDER ALS HORIZONTAL 2117 carry?
Solimpeks backs the WUNDER ALS HORIZONTAL 2117 with a 10-year product warranty, stated on this product page. Have the guarantee certificate stamped by the seller and follow the manual's operating conditions to keep the warranty valid.
