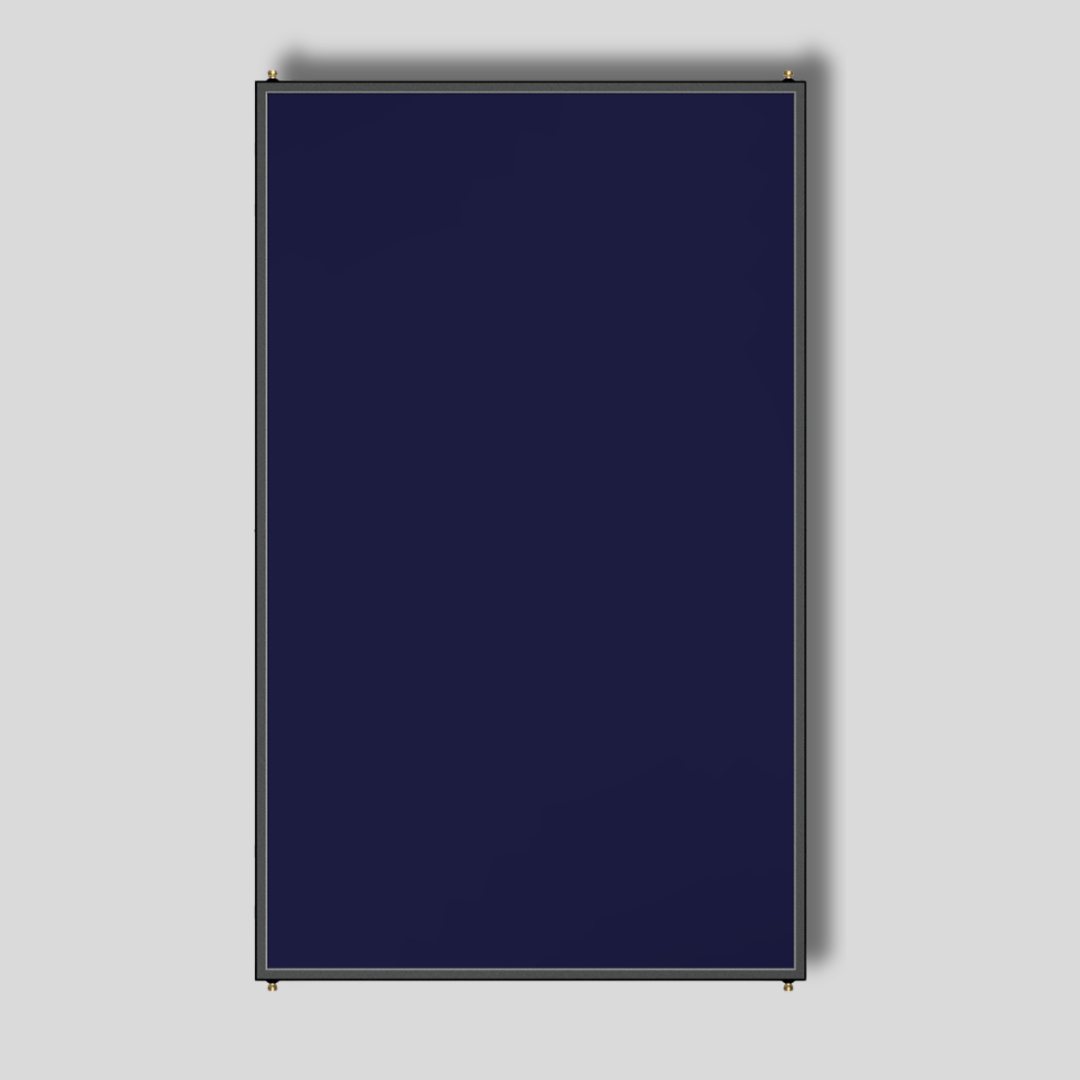

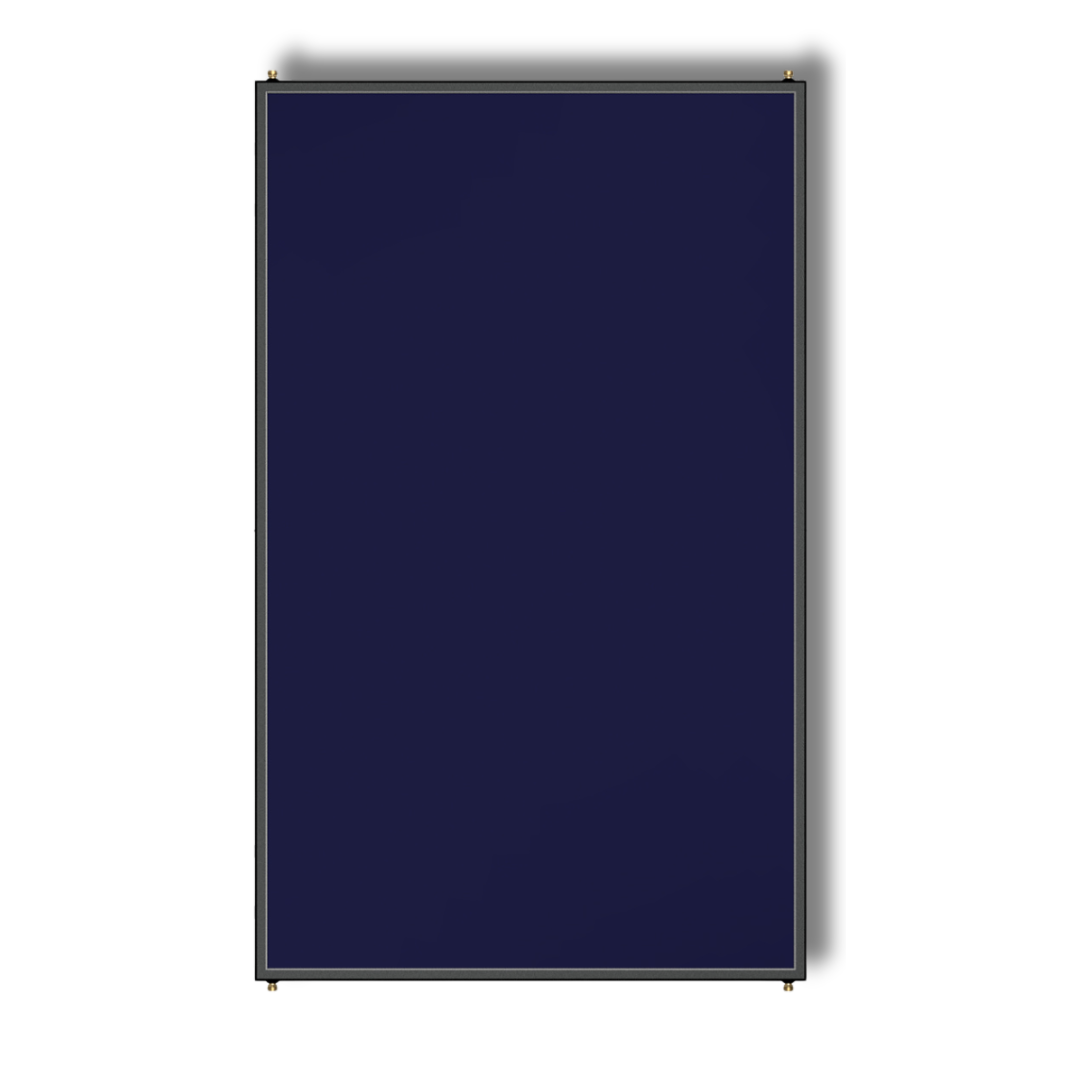

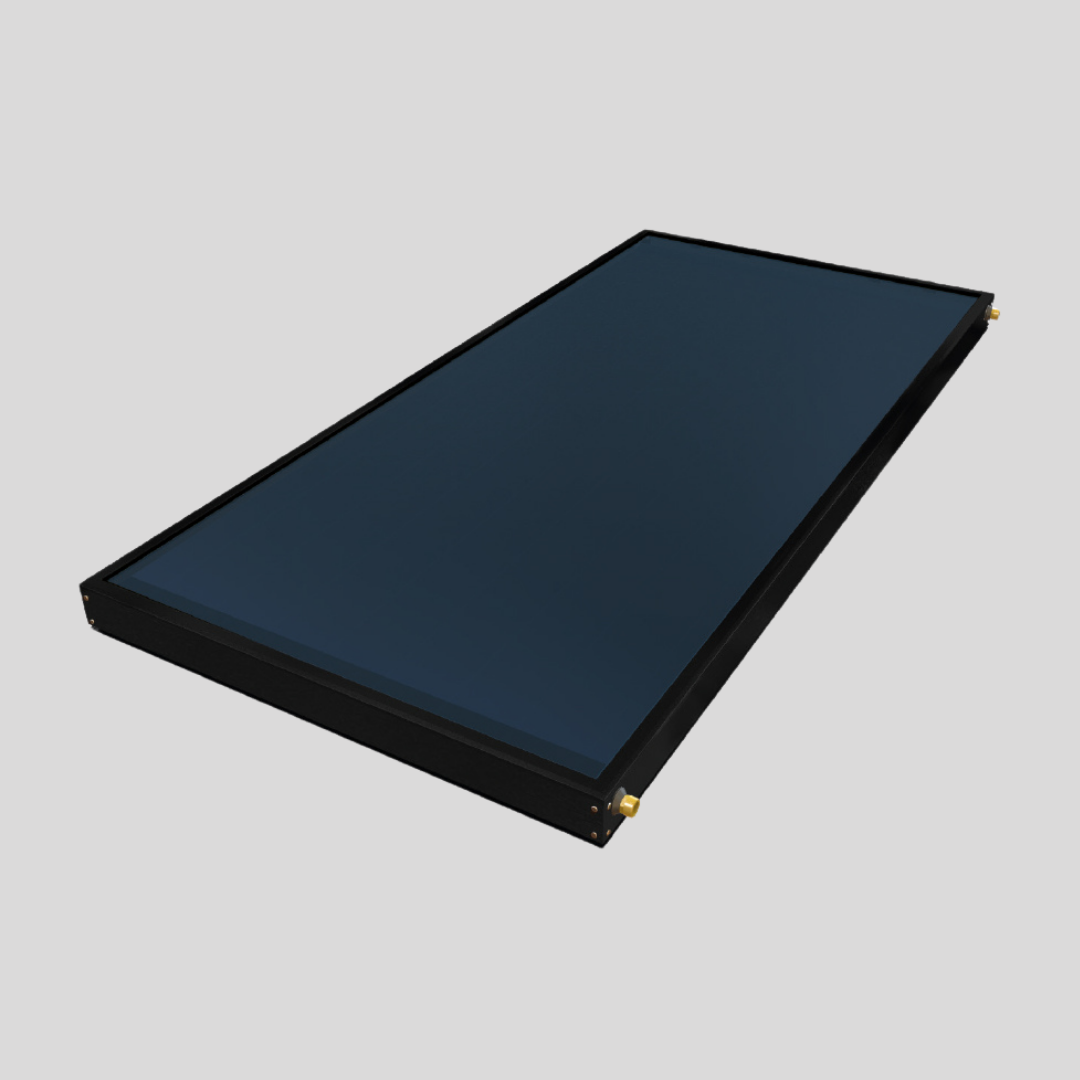

WUNDER ALS DRAIN 2510
High-efficiency 2.4 m² drain-back thermal collector designed for residential, commercial, and industrial applications.
- Superior Solar Absorption – Almeeco-Tinox selective coating and laser-welded copper pipes maximize heat transfer and efficiency.
- Durable & Weather-Resistant – Reinforced aluminum frame with tempered glass withstands harsh conditions.
- Easy & Fast Installation – Quick-mounting system compatible with all standard roof types.
- High-Performance Insulation – Rock wool insulation minimizes heat loss for colder climates.
- Certified & Long-Lasting – Solar Keymark certified with a 10-year system warranty.
Efficient Solar Heating with WUNDER ALS DRAIN

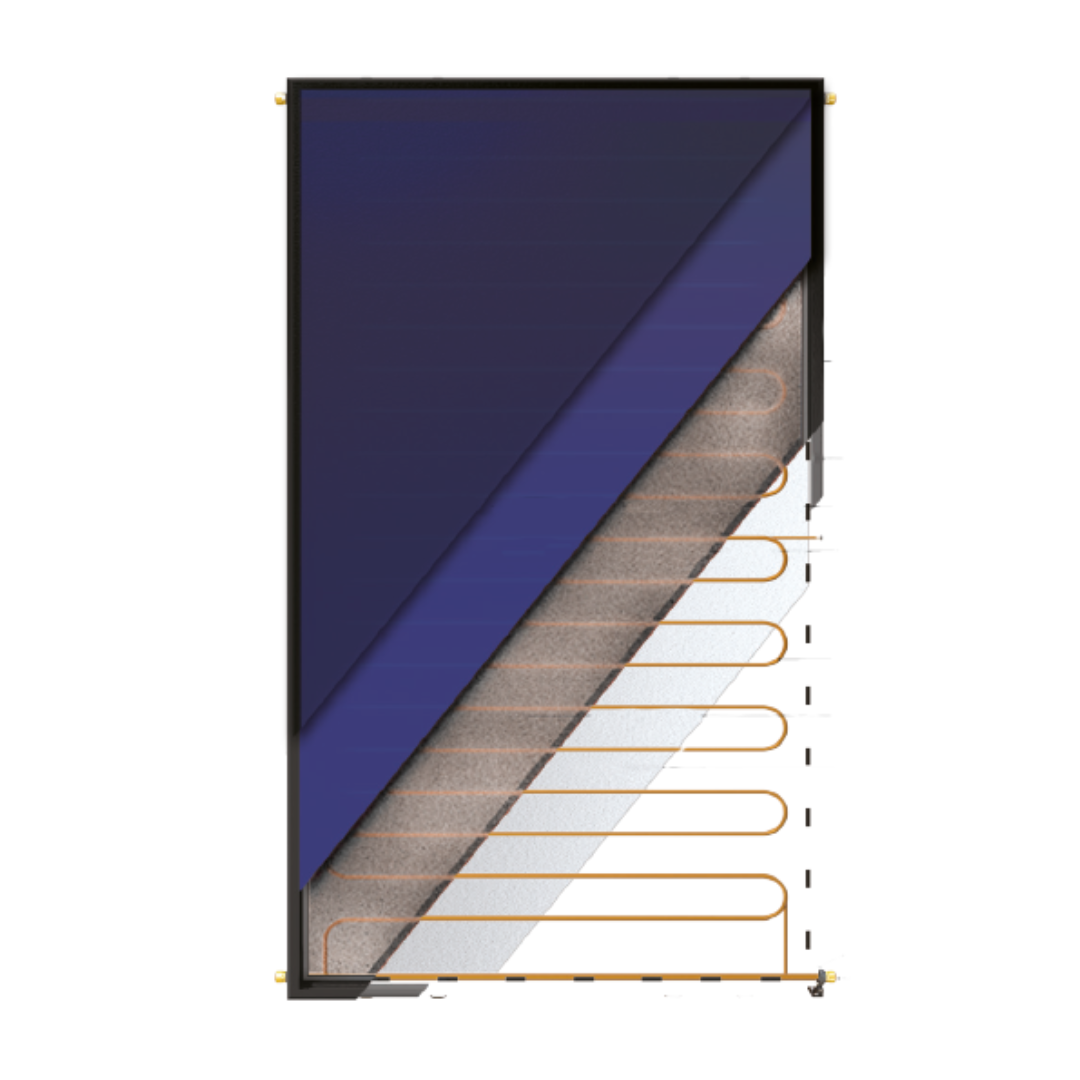

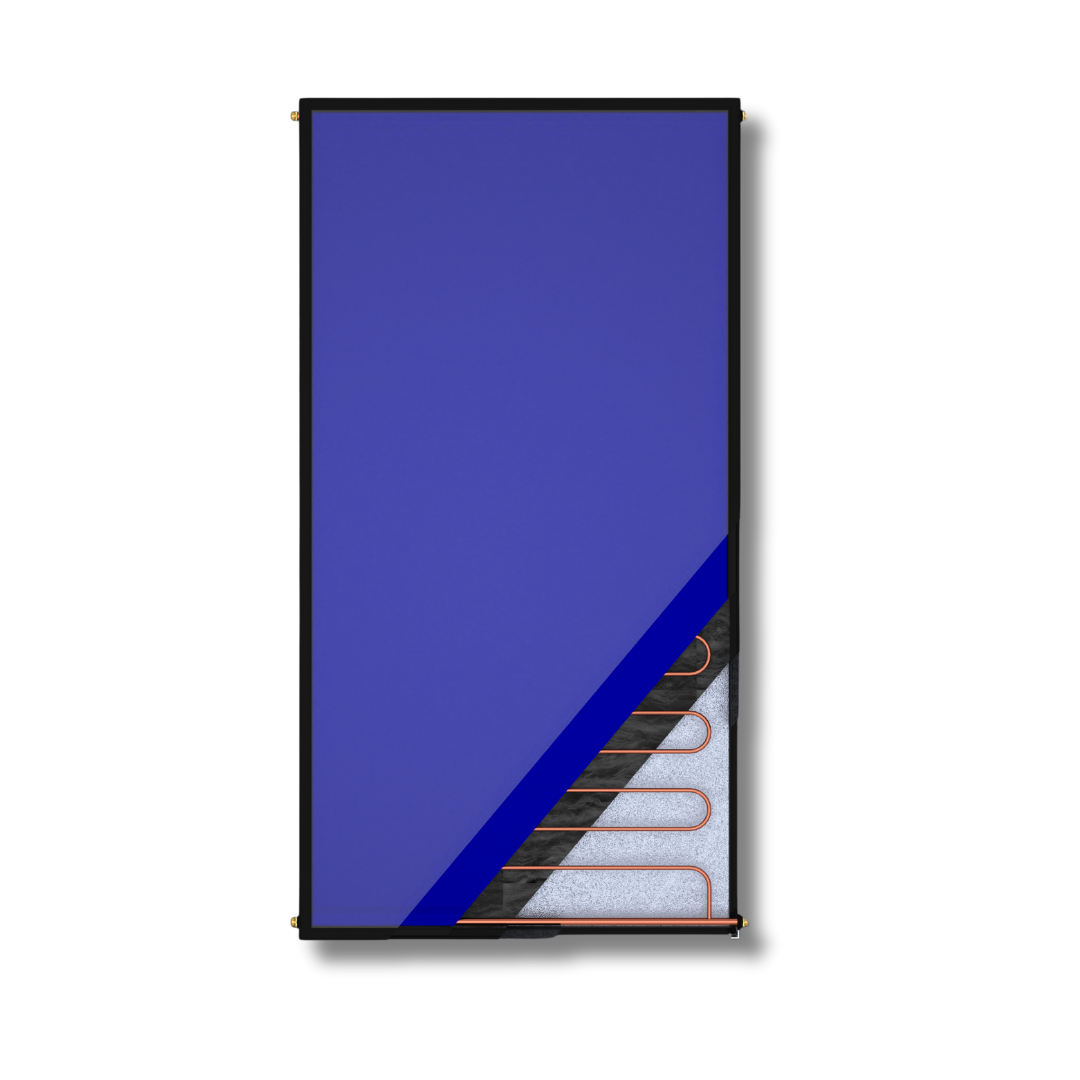

The WUNDER ALS DRAIN 2510 Thermal Collector is a cutting-edge solar heating solution that combines advanced technology with robust engineering. Its highly selective Almeco-Tinox absorber ensures maximum solar energy absorption, while the laser-welded copper pipes enhance heat transfer efficiency.
Built to withstand the toughest conditions, the WUNDER ALS DRAIN 2510 features a reinforced aluminum frame and tempered glass, providing exceptional durability and resistance to environmental stress. The rock wool insulation minimizes heat loss, ensuring consistent performance even in colder climates.
Installation is quick and hassle-free, thanks to the easy-to-use fastening system designed for all standard roof types. This reduces installation time and minimizes the need for heavy equipment, making it a cost-effective choice for both new and existing buildings.
Backed by a 10-year system warranty and Solar Keymark certification, the WUNDER ALS DRAIN 2510 is a trusted and eco-friendly solution for all hot water needs.
General
Dimensions
mm
1990×1220×90
Weight
kg
44
Gross Area
m²
2.42
Aperture Area
m²
2.24
Absorber Area
m²
2.23
Absorptance
0.95
Emittance
0.03
Absorber Material
Selective coating aluminum
Glass Material
Low Iron Tempered Glass
Glass Thickness
mm
4
Heat Carrier Volume
L
1.27
Absorber Pipe Diameter
mm
10
Header Pipe Diameter
mm
18
Connection
inch
3/4"
Insulation Material
Rock Wool
Insulation Thickness
mm
40
Stagnation Temperature
°C
192
Maximum Operation Pressure
Bar
10
Nominal Flow Rate
L/h
120
Notes
- Solar Keymark certified with a 10-year system warranty.
- Turbulent flow design enhances heat transfer efficiency.
- Compatible with all standard roof types using the modular fastening system.
- Suitable for residential, commercial, and industrial applications.
Contact quality@solimpeks.com for local certificates / OEM certificate duplication requests.
