Enamel TSE-VS 160L

Name: Enamel TSE-VS 160L
Brand: SOLIMPEKS

Download Flyer Download Manual

Enamel TSE-VS 160L

The TSE-VS 160L Tank is specially designed for efficient hot water storage and seamless integration with solar thermal systems, featuring a single heat exchanger optimized for solar heat transfer.

Expanded Coil Surface for Heat Pumps: Maximizes heat transfer efficiency, ensuring rapid and consistent water heating.
Titanium Enamel Coating: Protects against corrosion, abrasion, and bacterial growth, ensuring long-term hygiene.
Hygienic Water Storage: AISI 316L stainless steel heat exchangers prevent bacterial growth and ensure safe drinking water.
Single Coil Design for Solar Systems: Maximizes compatibility and delivers consistent heating performance.
Superior Hygiene & Durability: Inner surfaces coated with 200-400 μm advanced enamel in compliance with DIN 4753/3.
Certified Quality: Produced in accordance with TS EN 12897, guaranteeing reliability and international quality compliance.
Efficient Heat Retention: High-quality polyurethane insulation minimizes heat loss.
Flexible Heating Support: Optional electric heater integration available.

Engineered for Seamless Solar Integration

TSE-VS 160L Tank

Storage Tank

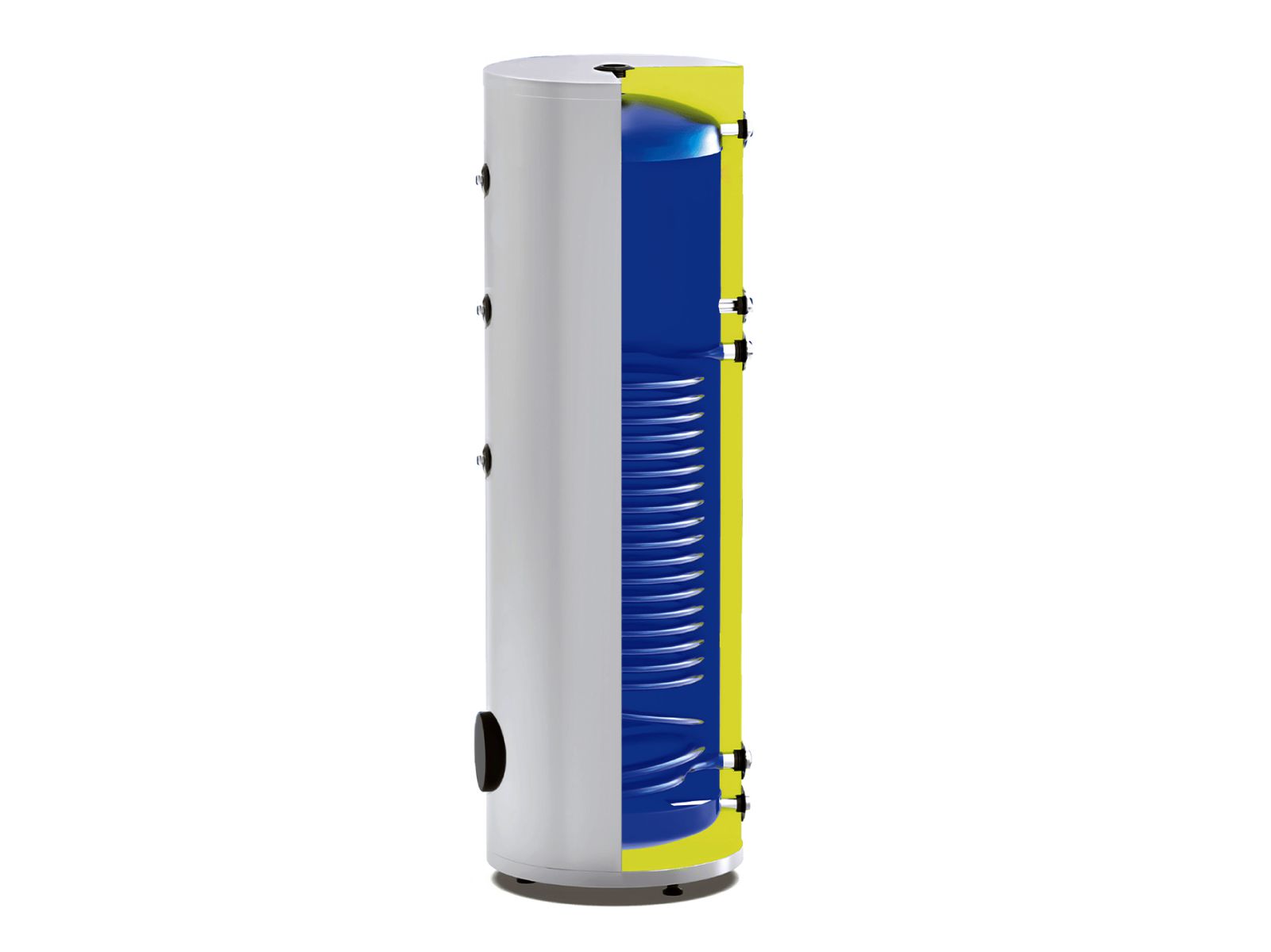

The TSE-VS 160L Tank is a solar-ready hot water storage tank featuring a single, precision-engineered heat exchanger coil that maximizes heat absorption from solar collectors for efficient, reliable performance in residential, commercial, and light industrial applications.

Its enamel coating (200–400 µm), compliant with DIN 4753/3 and produced according to TS EN 12897, keeps the water fresh and hygienic while protecting against corrosion and scaling. A magnesium anode and an electrostatically coated galvanized exterior add extra durability, while high-density polyurethane insulation minimizes heat loss and keeps water at an optimal temperature.

Engineered for Seamless Solar Integration

Compact and easy to install, the TSE-VS Tank fits a variety of spaces, and an optional electric heater can be added for continuous hot water supply whenever backup heating is needed. Available in capacities from 160 L to 500 L, it combines sustainability, performance, and long-lasting reliability.

Customers 25M+

Countries with Service 96+

Warranty 5 Years

Capacity 160

Product Overview

Enamel TSE-VS Series

The TSE-VS 160L Tank is specially designed for efficient hot water storage and seamless integration with solar thermal systems, featuring a single heat exchanger optimized for solar heat transfer.

Request a Quote

Understand the technology

Explainers from our Knowledge Hub on how this technology works.

Glossary Enamel Coating (Glass-Lined Tank) Enamel coating is a glass layer fused onto the steel interior of a hot water tank at roughly 850 °C, forming a chemically neutral... Glossary Magnesium Anode (Sacrificial Anode) A magnesium anode is a sacrificial rod fitted inside enamelled hot water tanks that corrodes deliberately so the steel tank does... Common Questions Enamel-coated vs stainless steel hot water tanks: which lasts longer? Both enamel-coated and stainless steel tanks last 15–25 years when matched to the local water. Enamel-coated steel tolerates... Common Questions How often should the magnesium anode be checked and replaced? Inspect the magnesium anode every two years and replace it once about 60% of its mass is consumed or its diameter falls below...

Frequently asked questions

Short, factual answers about the Enamel TSE-VS 160L.

What protects the Enamel TSE-VS 160L against corrosion?

The steel vessel is lined with a 200-400 μm titanium-stabilised enamel coating in compliance with DIN 4753/3, backed by a sacrificial magnesium anode. Together they protect against corrosion, abrasion and bacterial growth over the tank's service life.

What is the TSE-VS variant designed for?

The TSE-VS carries a single solar-optimised heat-exchanger coil, making it the variant to pair with a solar thermal circuit. For heat pumps choose the TSE-VS HP with its heat-pump-optimised coil, or the twin-coil TSE-VD for combined sources.

Is 160 litres the right size for my household?

As a rule of thumb, size a hot water tank at 30-50 litres per person per day, and go larger — 200-300 L for a family of four — when a heat pump or solar thermal system charges the tank at lower temperature. A 160 L tank typically serves about 3-5 people's daily demand at conventional reheat temperatures, fewer when a heat pump or solar system charges it; households with bathtubs or high-flow showers should size to the peak draw instead.

Does the magnesium anode need maintenance?

Yes. The sacrificial magnesium anode is consumed over time as it protects the enamel-lined steel. Have it inspected at the service intervals given in the product manual and replaced when depleted — that keeps the corrosion protection intact.

What are the operating limits of the Enamel TSE-VS 160L?

Maximum working pressure is 6 bar and the permissible boiler water temperature is 95 °C. Heat retention comes from 50 mm of polyurethane insulation under the outer jacket.
