Enamel TSE-VD 160L

Name: Enamel TSE-VD 160L
Brand: SOLIMPEKS

Download Flyer Download Manual

Enamel TSE-VD 160L

The TSE-VD 160L Tank is designed to provide efficient hot water storage and rapid heating, integrating two heat exchangers for maximum flexibility with solar collectors, heat pumps, or other external heat sources.

Dual Coil System for Maximum Efficiency: Allows integration with multiple heat sources, optimizing energy use and heating performance.
Expanded Coil Surface for Heat Pumps: Maximizes heat transfer efficiency, ensuring rapid and consistent water heating.
Titanium Enamel Coating: Protects against corrosion, abrasion, and bacterial growth, ensuring long-term hygiene.
Hygienic Water Storage: AISI 316L stainless steel heat exchangers prevent bacterial growth and ensure safe drinking water.
Superior Corrosion Protection: 200-400 μm titanium enamel coating extends lifespan.
High-Density Insulation: Rigid polyurethane foam reduces heat loss and saves energy.
Versatile Compatibility: Works seamlessly with solar, heat pumps, and auxiliary heating systems.
Flexible Heating Support: Optional electric heater integration for additional comfort and backup.

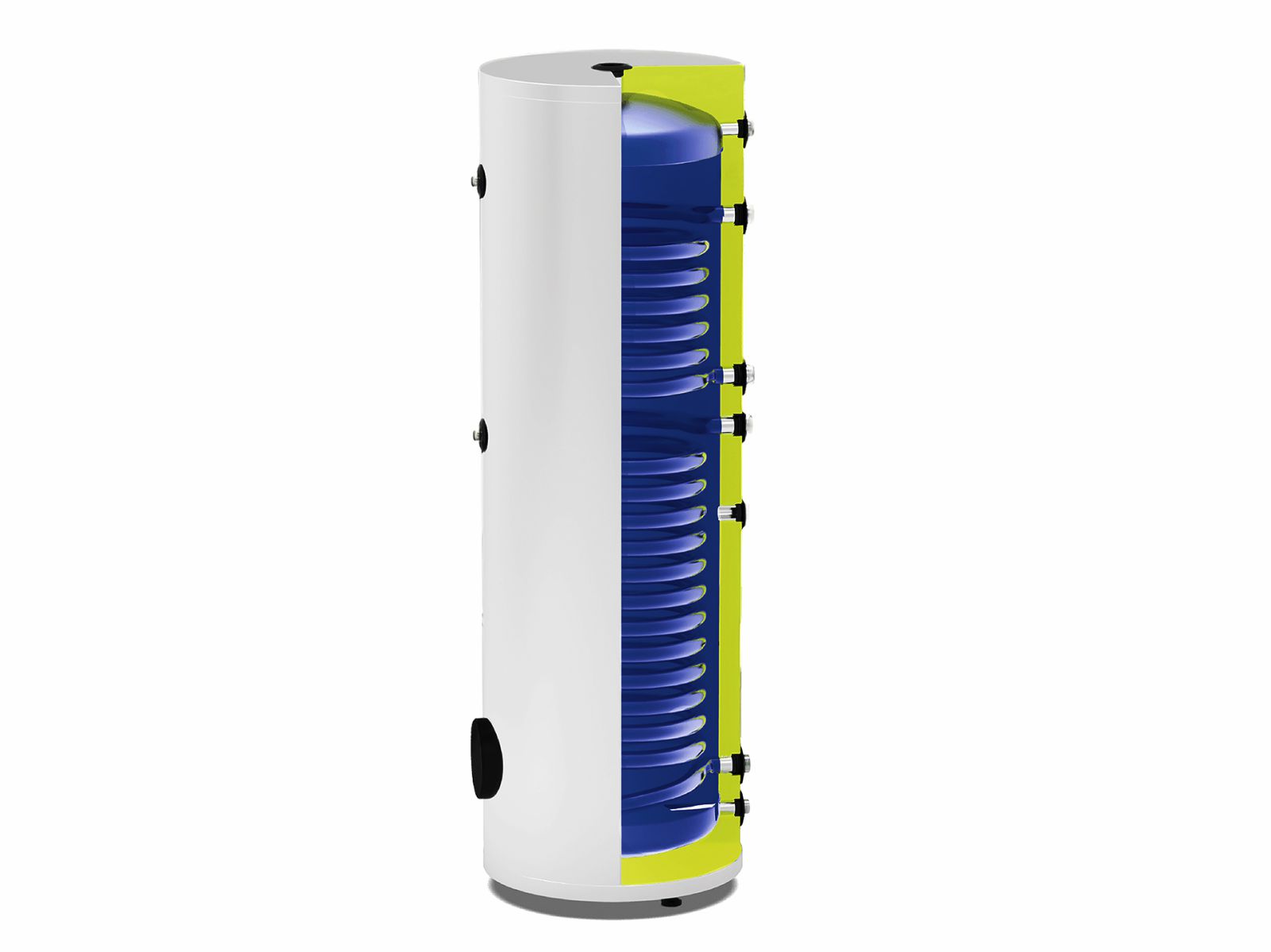

Maximum Efficiency with Dual Heat Exchangers

TSE-VD Series

The TSE-VD 160L Tank is designed to provide efficient hot water storage and rapid heating, integrating two heat exchangers for maximum flexibility. Whether paired with solar collectors, heat pumps, or other external heat sources, this advanced system ensures optimal energy utilization and consistent hot water supply.

With a corrosion-resistant titanium enamel coating, high-density polyurethane insulation, and a magnesium anode for extra protection, the tank delivers long-lasting durability and superior hygiene. The double coil system significantly boosts heat exchange efficiency, making it ideal for multi-source heating applications.

TSE-VD 160L Tank — Maximum Efficiency with Dual Heat Exchangers

Storage Tank

The TSE-VD 160L Tank is a high-performance hot water storage tank, featuring two heat exchangers for optimal energy efficiency. Designed for multi-source heating systems, it seamlessly integrates solar, heat pump, and auxiliary heating technologies. With its titanium enamel-coated interior, high-density insulation, and galvanized steel body, it ensures long-lasting durability, superior hygiene, and maximum heat retention.

The TSE-VD 160L Tank is a premium hot water storage solution, built for efficient and reliable performance in modern heating systems. Featuring dual coil heat exchangers, it maximizes energy utilization by allowing connections to multiple heat sources, such as solar thermal systems, heat pumps, and auxiliary heating units.

Its 200–400 µm titanium enamel coating provides superior protection against corrosion, scaling, and bacterial growth, ensuring hygienic and odor-free water storage. The magnesium anode further enhances durability, while the galvanized steel exterior with electrostatic paint guarantees a long service life.

To minimize heat loss and maximize efficiency, the tank is insulated with rigid polyurethane foam, maintaining optimal water temperature with reduced energy consumption. The expanded coil surface ensures rapid heat exchange, delivering a steady supply of hot water even in demanding applications.

With capacities ranging from 160 L to 500 L, the TSE-VD Tank is an ideal solution for homes, commercial properties, and industrial applications, offering energy savings, durability, and superior performance.

Customers 25M+

Countries with Service 96+

Warranty 5 Years

Capacity 160

Product Overview

Enamel TSE-VD Series

Request a Quote

Understand the technology

Explainers from our Knowledge Hub on how this technology works.

Glossary Enamel Coating (Glass-Lined Tank) Enamel coating is a glass layer fused onto the steel interior of a hot water tank at roughly 850 °C, forming a chemically neutral... Glossary Magnesium Anode (Sacrificial Anode) A magnesium anode is a sacrificial rod fitted inside enamelled hot water tanks that corrodes deliberately so the steel tank does... Common Questions Enamel-coated vs stainless steel hot water tanks: which lasts longer? Both enamel-coated and stainless steel tanks last 15–25 years when matched to the local water. Enamel-coated steel tolerates... Common Questions How often should the magnesium anode be checked and replaced? Inspect the magnesium anode every two years and replace it once about 60% of its mass is consumed or its diameter falls below...

Frequently asked questions

Short, factual answers about the Enamel TSE-VD 160L.

What protects the Enamel TSE-VD 160L against corrosion?

The steel vessel is lined with a 200-400 μm titanium-stabilised enamel coating in compliance with DIN 4753/3, backed by a sacrificial magnesium anode. Together they protect against corrosion, abrasion and bacterial growth over the tank's service life.

What is the TSE-VD variant designed for?

The TSE-VD carries two heat-exchanger coils, so two heat sources — for example a solar circuit and a heat pump or boiler — can charge the same tank simultaneously. That makes it the variant for multi-source systems.

Is 160 litres the right size for my household?

As a rule of thumb, size a hot water tank at 30-50 litres per person per day, and go larger — 200-300 L for a family of four — when a heat pump or solar thermal system charges the tank at lower temperature. A 160 L tank typically serves about 3-5 people's daily demand at conventional reheat temperatures, fewer when a heat pump or solar system charges it; households with bathtubs or high-flow showers should size to the peak draw instead.

Does the magnesium anode need maintenance?

Yes. The sacrificial magnesium anode is consumed over time as it protects the enamel-lined steel. Have it inspected at the service intervals given in the product manual and replaced when depleted — that keeps the corrosion protection intact.

What are the operating limits of the Enamel TSE-VD 160L?

Maximum working pressure is 6 bar and the permissible boiler water temperature is 95 °C. Heat retention comes from 50 mm of polyurethane insulation under the outer jacket.
