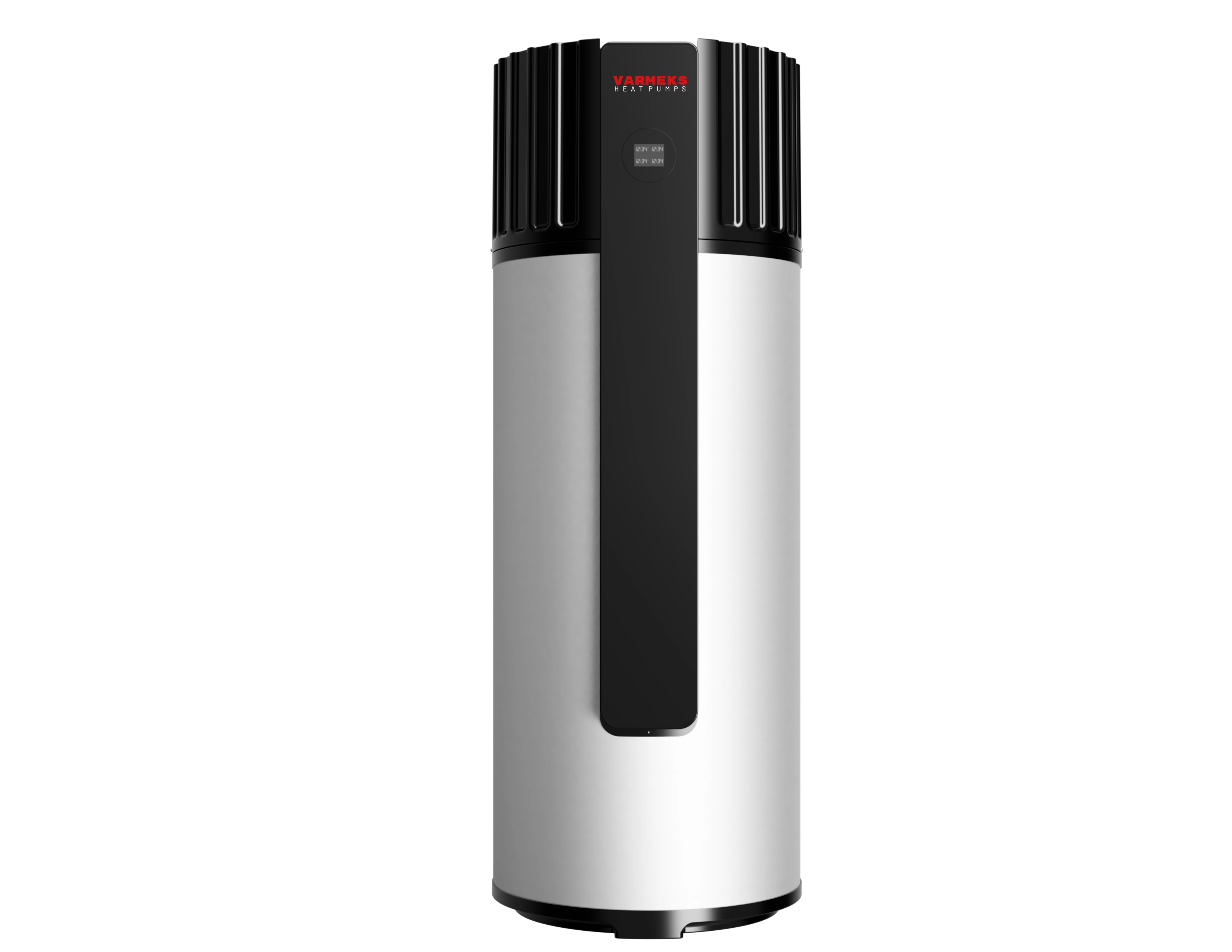

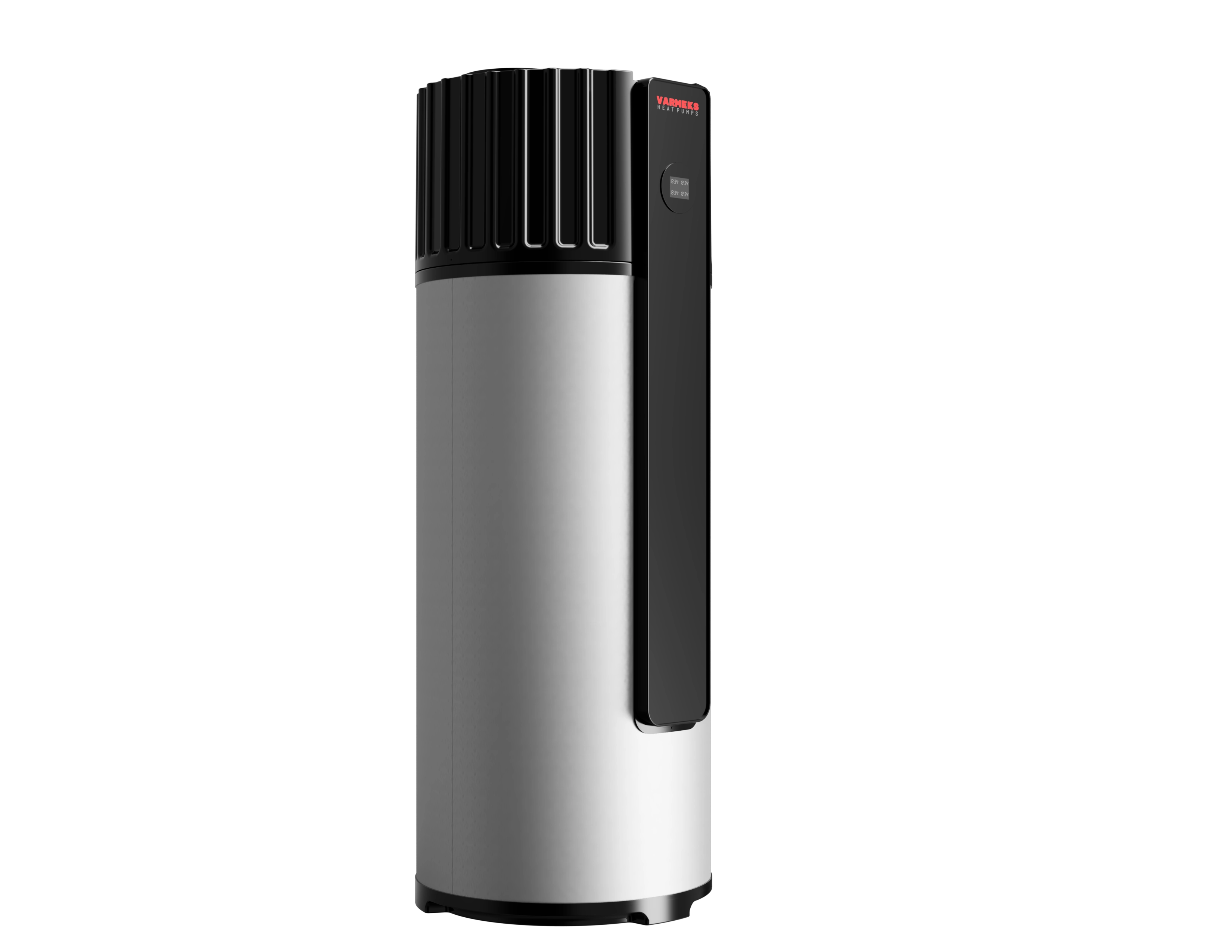

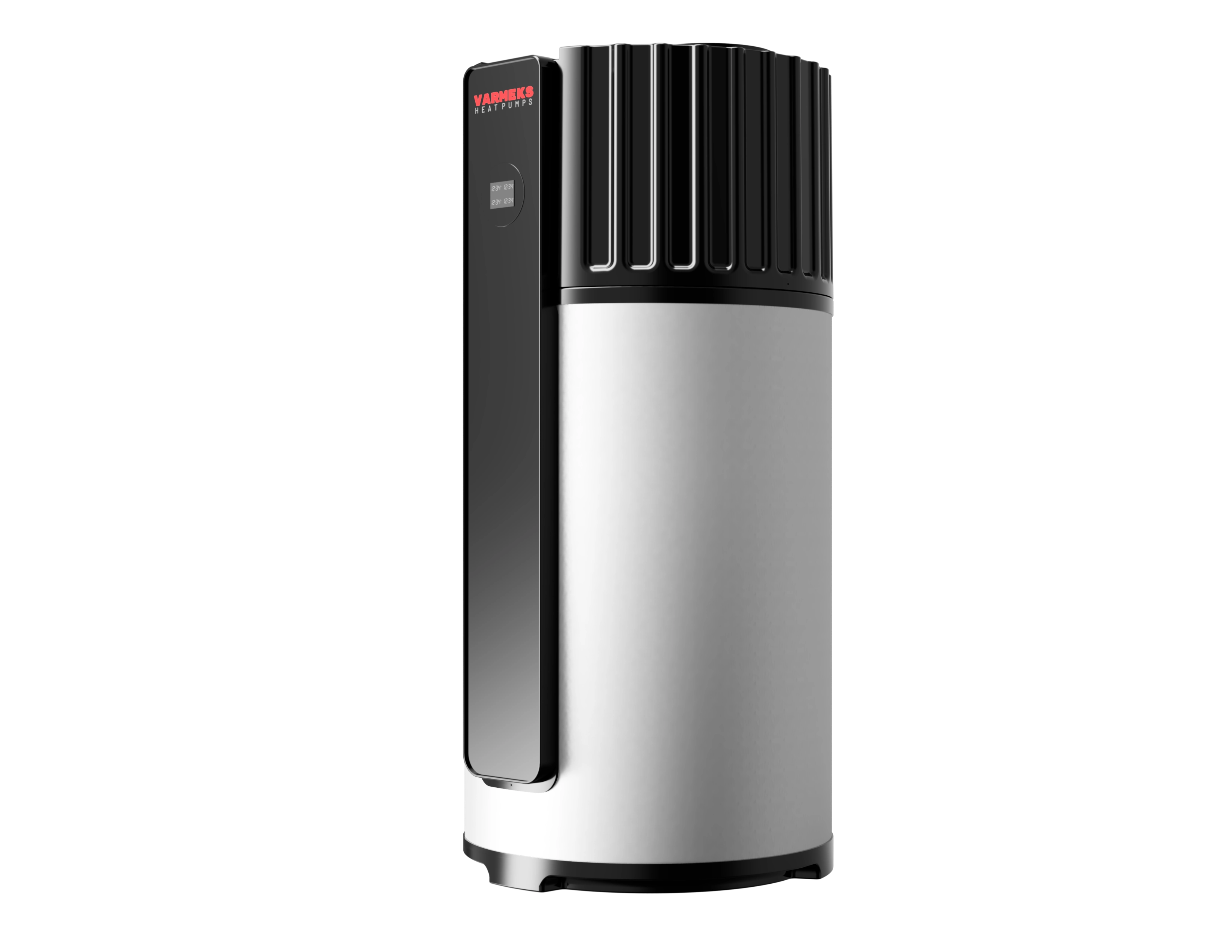

Varm All Series
Air-source domestic hot water heat pump with integrated enamel-coated tank, delivering hygienic DHW up to 75 °C for residential and small commercial use.
- R134A refrigerant with low ozone-depletion impact and high efficiency.
- WiFi & IoT support for remote monitoring, temperature setting, scheduling and energy tracking.
- 75 °C hot water outlet for bathrooms, kitchens and washbasins.
- Enameled tank inner surface with anode rod for hygiene and long life.
- PU foam insulation + ABS outer body minimize heat loss; 48 dB(A) quiet operation.
Domestic Hot Water Heat Pump
Varm All Series heat pumps produce domestic hot water up to 75 °C using ambient air. They efficiently meet bathroom and kitchen hot-water needs in residential and small commercial applications. An enameled inner tank surface and anode rod ensure hygiene and long life, while PU foam insulation and the ABS outer body minimize heat loss.
Operating at a low noise level of 48 dB(A), the unit uses R134A refrigerant and a high-efficiency compressor. An external electric backup heater, electronic expansion valve and digital display make operation comfortable and precise. A high COP value delivers significant energy savings.
General
Voltage / Phase / Frequency
V/Ph/Hz
220-240/1/50
Water Tank Actual Capacity
L
149
Heating Capacity
W
2400* (+2000**)
Nominal Power Input
W
585* (+2000**)
Nominal Current
A
3* (+9.3**)
COP
W/W
4.1
Maximum Power Input
W
1000 (+2000**)
Maximum Current
A
5 (+9.3**)
Max. Outlet Water Temp (no E-heater)
°C
75
Refrigerant
R134A
Waterproof Level
IPX1
Max. Allowable Tank Pressure
bar
10
Auxiliary Electric Heater
kW
2
Electronic Expansion Valve
Yes
Cold Water Inlet
inch
3/4"
Hot Water Outlet
inch
3/4"
Aux. Heat Source In / Out
inch
1 1/4"
Net Dimensions (Ø × H)
mm
Ø640 × 1525
Net Weight
kg
90
General
Voltage / Phase / Frequency
V/Ph/Hz
220-240/1/50
Water Tank Actual Capacity
L
197
Heating Capacity
W
2400* (+2000**)
Nominal Power Input
W
585* (+2000**)
Nominal Current
A
3* (+9.3**)
COP
W/W
4.1
Maximum Power Input
W
1000 (+2000**)
Maximum Current
A
5 (+9.3**)
Max. Outlet Water Temp (no E-heater)
°C
75
Refrigerant
R134A
Waterproof Level
IPX1
Max. Allowable Tank Pressure
bar
10
Auxiliary Electric Heater
kW
2
Electronic Expansion Valve
Yes
Cold Water Inlet
inch
3/4"
Hot Water Outlet
inch
3/4"
Aux. Heat Source In / Out
inch
1 1/4"
Net Dimensions (Ø × H)
mm
Ø760 × 1550
Net Weight
kg
108
General
Voltage / Phase / Frequency
V/Ph/Hz
220-240/1/50
Water Tank Actual Capacity
L
286
Heating Capacity
W
2400* (+2000**)
Nominal Power Input
W
585* (+2000**)
Nominal Current
A
3* (+9.3**)
COP
W/W
4.1
Maximum Power Input
W
1000 (+2000**)
Maximum Current
A
5 (+9.3**)
Max. Outlet Water Temp (no E-heater)
°C
75
Refrigerant
R134A
Waterproof Level
IPX1
Max. Allowable Tank Pressure
bar
10
Auxiliary Electric Heater
kW
2
Electronic Expansion Valve
Yes
Cold Water Inlet
inch
3/4"
Hot Water Outlet
inch
3/4"
Aux. Heat Source In / Out
inch
1 1/4"
Net Dimensions (Ø × H)
mm
Ø760 × 1900
Net Weight
kg
118
Notes
- * = heat pump only, ** = aux. electric heater contribution.
- Enameled tank inner surface + magnesium anode rod for hygiene and longevity.
- Electronic expansion valve for precise refrigerant metering.
Contact quality@solimpeks.com for local certificates / OEM certificate duplication requests.
